MH10-8FLK

Active

3M (TC)

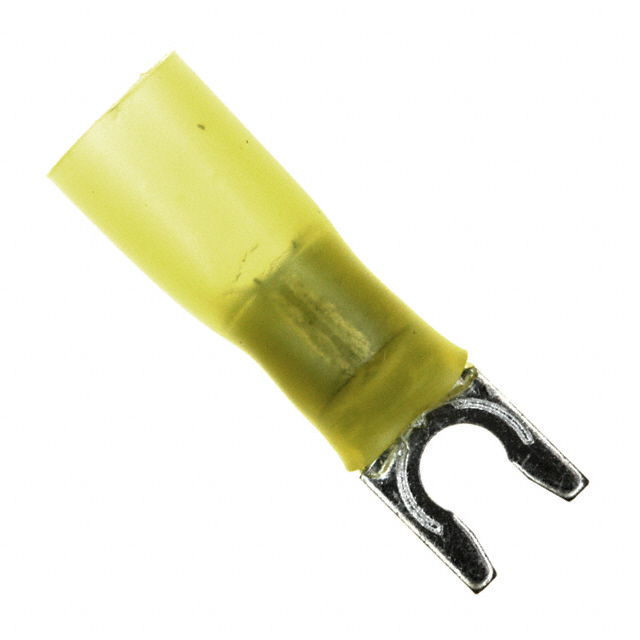

LOCKING FORK BRAZED SEAM HEAT SHRINK TERMINAL (BULK)

Search across all available documentation for this part.

Active

3M (TC)

LOCKING FORK BRAZED SEAM HEAT SHRINK TERMINAL (BULK)

Technical Specifications

Parameters and characteristics for this part

Specification	MH10-8FLK

Color	Yellow
Contact Finish	Tin
Contact Material	ETP, Copper
Features	Brazed Seam
Insulation	Insulated with Heat Shrink
Length - Overall	25.4 mm
Length - Overall [x]	1 in
Length - Ring Center to Termination [x]	0.16 in
Length - Ring Center to Termination [x]	4.06 mm
Length - Termination [custom]	16.26 mm
Length - Termination [custom]	0.64 in
Material - Insulation [custom]	Polyolefin
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Snap, Spring
Termination	Crimp
Width - Outer Edges [y]	8.13 mm
Width - Outer Edges [y]	0.32 in
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

Part	Termination	Number of Wire Entries	Wire Gauge [Max]	Wire Gauge [Min]	Color	Terminal Type	Insulation	Material - Insulation [custom]	Mounting Type	Length - Overall [x]	Length - Overall [x]	Thickness	Thickness	Features	Contact Material	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Finish	Length - Ring Center to Termination	Length - Ring Center to Termination	Stud/Tab Size	Length - Termination [x]	Length - Termination [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination [custom]	Length - Termination [custom]	Length - Overall
3M (TC) MH10BCX-BOTTLE	Crimp	2	12 AWG	10 AWG	Yellow	Butt Splice Individual Openings Inline	Fully Insulated Heat Shrink
3M (TC) MH10-38RK	Crimp		12 AWG	10 AWG	Yellow	Circular	Insulated with Heat Shrink	Polyolefin	Free Hanging (In-Line)	30.48 mm	1.2 in	0.04 in	1.02 mm	Brazed Seam	Copper ETP	3/8 Stud	14.99 mm	0.59 in	Tin
3M (TC) MH10-14FLX-BOTTLE	Screw		12 AWG	10 AWG	Yellow	Snap Spring	Insulated with Heat Shrink	Polyolefin	Free Hanging (In-Line)	30.48 mm	1.2 in			Brazed Seam	Copper ETP				Tin	0.3 in	7.62 mm	0.25 Stud	16.51 mm	0.65 in	0.43 "	10.92 mm
3M (TC) MH10-14RK	Crimp		12 AWG	10 AWG	Yellow	Circular	Insulated with Heat Shrink	Polyolefin	Free Hanging (In-Line)	30.48 mm	1.2 in	0.04 in	1.02 mm	Brazed Seam	Copper ETP		14.99 mm	0.59 in	Tin			0.25 Stud
3M (TC) MH10-8FLK	Crimp		12 AWG	10 AWG	Yellow	Snap Spring	Insulated with Heat Shrink	Polyolefin	Free Hanging (In-Line)		1 in			Brazed Seam	Copper ETP	8 Stud			Tin						0.32 in	8.13 mm	0.16 in	4.06 mm	16.26 mm	0.64 in	25.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Yellow 8 Stud Spade Terminal Connector Crimp 10-12 AWG
