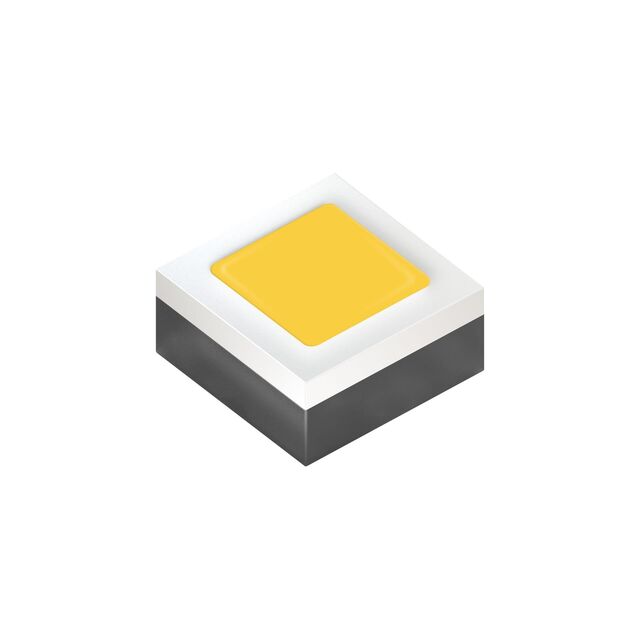

GW VJLPL1.EM-LWL2-XX55-1-350-R18
Activeams-OSRAM USA INC.
LED OSLON PURE 1414 WHT 4000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GW VJLPL1.EM-LWL2-XX55-1-350-R18
Activeams-OSRAM USA INC.
LED OSLON PURE 1414 WHT 4000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GW VJLPL1.EM-LWL2-XX55-1-350-R18 |
|---|---|
| CCT (K) | 4000 K |
| Color | Neutral, White |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 1 A |
| Current - Test | 350 mA |
| Flux @ 85°C, Current - Test | 150 lm |
| Flux @ 85°C, Current - Test [Max] | 165 lm |
| Flux @ 85°C, Current - Test [Min] | 135 lm |
| Height - Seated (Max) [Max] [z] | 0.85 mm |
| Height - Seated (Max) [Max] [z] | 0.033 " |
| Lumens/Watt @ Current - Test | 153 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 0505 |
| Package / Case | 1313 Metric |
| Size / Dimension [x] | 0.055 in |
| Size / Dimension [x] | 1.4 mm |
| Size / Dimension [y] | 0.055 in |
| Size / Dimension [y] | 1.4 mm |
| Thermal Resistance of Package [custom] | 5.7 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.29 | |
| 10 | $ 0.82 | |||
| 100 | $ 0.60 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.46 | |||
| 2000 | $ 0.43 | |||
| Digi-Reel® | 1 | $ 1.29 | ||
| 10 | $ 0.82 | |||
| 100 | $ 0.60 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.46 | |||
| 2000 | $ 0.43 | |||
| Tape & Reel (TR) | 5000 | $ 0.42 | ||
| 10000 | $ 0.41 | |||
Description
General part information
GW VJLPL1.EM Series
LED Lighting OSLON® Pure 1414 White, Neutral 4000K 2.8V 350mA 120° 0505 (1313 Metric)
