60-11-D394-1671

Active

Parker Chomerics

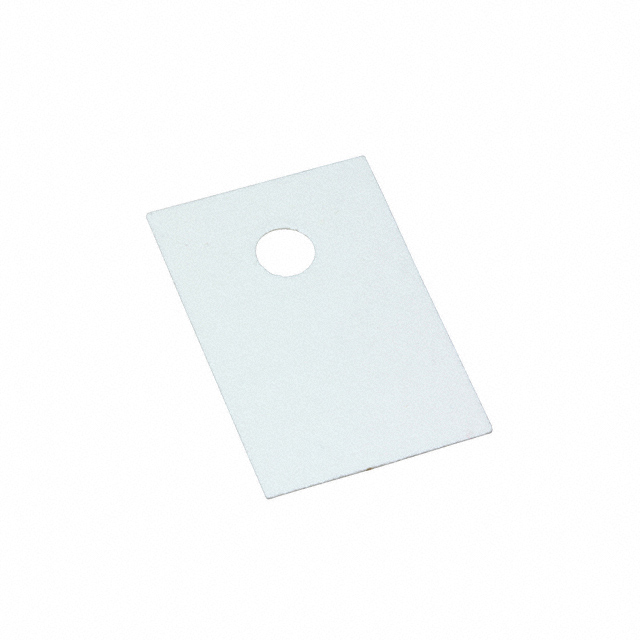

THERM PAD 19.05MMX12.7MM WHT

Search across all available documentation for this part.

Active

Parker Chomerics

THERM PAD 19.05MMX12.7MM WHT

Technical Specifications

Parameters and characteristics for this part

Part	Shape	Usage	Backing, Carrier	Color	Type	Shelf Life	Thermal Conductivity	Thickness	Thickness	Outline [x]	Outline [y]	Thickness [custom]	Thickness [custom]	Material
Parker Chomerics 60-11-D394-T441-08	Rectangular	TO-220	Fiberglass	Pink	Insulator Pad Sheet	Indefinite	1.1 W/m-K	0.008 in	0.203 mm	19.05 mm	12.7 mm
Parker Chomerics 60-11-D394-1674	Rectangular	TO-220	Fiberglass	Blue	Insulator Pad Sheet	Indefinite				19.05 mm	12.7 mm	0.254 mm	0.01 in	Silicone
Parker Chomerics 60-11-D394-T500	Rectangular	TO-220	Fiberglass	Green	Insulator Pad Sheet	Indefinite	2.1 W/m-K			19.05 mm	12.7 mm	0.254 mm	0.01 in	Acrylic
Parker Chomerics 60-11-D394-1671	Rectangular	TO-220	Fiberglass	White	Insulator Pad Sheet	Indefinite	2.6 W/m-K	0.015 in	0.381 mm	19.05 mm	12.7 mm			Acrylic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 2.96
