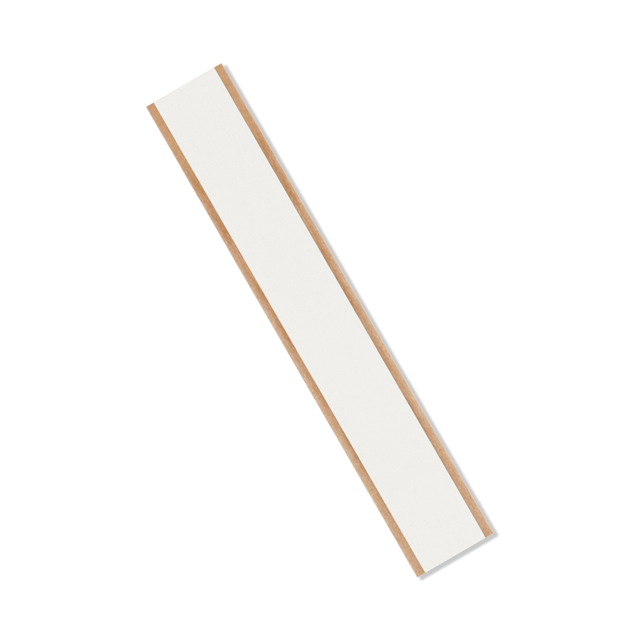

VF32W 0.5" X 9"-25

Active

TapeCase

TAPE DOUBLE COATED WHT 1/2"X9"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VF32W 0.5" X 9"-25

Active

TapeCase

TAPE DOUBLE COATED WHT 1/2"X9"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VF32W 0.5" X 9"-25

Adhesive	High Tack Acrylic
Backing, Carrier [custom]	PVC
Backing, Carrier [custom]	Paper
Color	White
Length	9 "
Length	228.6 mm
Tape Type	Double Coated Foam
Temperature Range	66 °C
Temperature Range	150 °F
Thickness	0.03125 in
Thickness	31 mils
Thickness	0.031 in
Thickness	0.787 mm
Usage	Bonding
Width	0.5 in
Width	12.7 mm
Width	0.5 in

VF32W Series

...

Part	Backing, Carrier [custom]	Backing, Carrier [custom]	Usage	Adhesive	Thickness	Thickness	Thickness	Thickness	Color	Tape Type	Temperature Range	Temperature Range	Width	Width	Width	Length	Length	Width [x]	Width [x]	Length [x]	Width	Width [y]	Width [y]	Length
TapeCase 1.5-5-VF32W	PVC	Paper	Bonding	High Tack Acrylic	0.03125 in	31 mils	0.031 in	0.787 mm	White	Double Coated Foam	66 °C	150 °F
TapeCase VF32W 0.5" X 9"-25	PVC	Paper	Bonding	High Tack Acrylic	0.03125 in	31 mils	0.031 in	0.787 mm	White	Double Coated Foam	66 °C	150 °F	0.5 in	12.7 mm	0.5 in	9 "	228.6 mm
TapeCase VF32W 1" X 3"-5	PVC	Paper	Bonding	High Tack Acrylic	0.03125 in	31 mils	0.031 in	0.787 mm	White	Double Coated Foam	66 °C	150 °F					76.2 mm	25.4 mm	1 in	3 in
TapeCase VF32W 1.5" X 2"-25	PVC	Paper	Bonding	High Tack Acrylic	0.03125 in	31 mils	0.031 in	0.787 mm	White	Double Coated Foam	66 °C	150 °F		38.1 mm	1.5 "						1 1/2
TapeCase VF32W 5" X 6"-25	PVC	Paper	Bonding	High Tack Acrylic	0.03125 in	31 mils	0.031 in	0.787 mm	White	Double Coated Foam	66 °C	150 °F				6 in	152.4 mm					127 mm	5 in
TapeCase VF32W 0.75" X 0.75"-5	PVC	Paper	Bonding	High Tack Acrylic	0.03125 in	31 mils	0.031 in	0.787 mm	White	Double Coated Foam	66 °C	150 °F	19.05 mm	0.75 in	0.75 in	0.75 in	19.05 mm							0.75 "
TapeCase VF32W 1" X 3"-100	PVC	Paper	Bonding	High Tack Acrylic	0.03125 in	31 mils	0.031 in	0.787 mm	White	Double Coated Foam	66 °C	150 °F					76.2 mm	25.4 mm	1 in	3 in
TapeCase 3.75-5-VF32W	PVC	Paper	Bonding	High Tack Acrylic	0.03125 in	31 mils	0.031 in	0.787 mm	White	Double Coated Foam	66 °C	150 °F
TapeCase VF32W 1" X 8"-25	PVC	Paper	Bonding	High Tack Acrylic	0.03125 in	31 mils	0.031 in	0.787 mm	White	Double Coated Foam	66 °C	150 °F				8 in	203.2 mm	25.4 mm	1 in
TapeCase VF32W 2" X 2"-100	PVC	Paper	Bonding	High Tack Acrylic	0.03125 in	31 mils	0.031 in	0.787 mm	White	Double Coated Foam	66 °C	150 °F										50.8 mm	2 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	13	$ 20.04

Description

General part information

VF32W Series

Double Coated Foam Tape High Tack Acrylic Adhesive White 0.50" (12.70mm) 1/2" X 9.00" (228.60mm)
