WS-SR-3-01

Active

Essentra Access Solutions

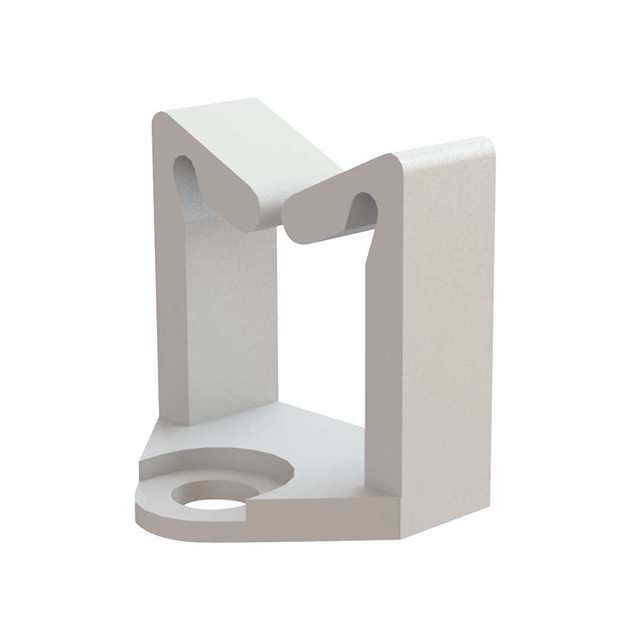

FASTENER, SCREW MOUNT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 15.5 MM, 12.4 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, SCREW MOUNT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 15.5 MM, 12.4 MM

Technical Specifications

Parameters and characteristics for this part

Specification	WS-SR-3-01

Color	Natural
Height [z]	1 in
Height [z]	25.4 mm
Length [x]	15.5 mm
Length [x]	0.61 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Fastener
Opening Size [x]	0.219 in
Opening Size [x]	5.56 mm
Opening Size [y]	0.73 in
Opening Size [y]	18.54 mm
Panel Hole Size [Max]	0.146 in
Panel Hole Size [Max]	3.71 mm
Panel Hole Size [Min]	3.61 mm
Panel Hole Size [Min]	0.142 in
Panel Thickness [Max]	0.219 "
Panel Thickness [Max]	5.56 mm
Panel Thickness [Min]	0.01 "
Panel Thickness [Min]	0.25 mm
Screw Size	#6, SR-35XX Series Rivet
Type	Clip, Wire Saddle
Width [x]	12.44 mm
Width [x]	0.49 in

Part	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Max]	Width [x]	Width [x]	Screw Size	Material	Length [x]	Length [x]	Mounting Type	Material Flammability Rating	Type	Height [z]	Height [z]	Opening Size [x]	Opening Size [y]	Opening Size [y]	Opening Size [x]	Color	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]
Essentra Access Solutions WS-SR-3-01	3.61 mm	0.146 in	0.142 in	3.71 mm	12.44 mm	0.49 in	#6 SR-35XX Series Rivet	Polyamide (PA66) Nylon 6/6	15.5 mm	0.61 in	Fastener	UL94 V-2	Clip Wire Saddle	1 in	25.4 mm	0.219 in	0.73 in	18.54 mm	5.56 mm	Natural	0.219 "	0.01 "	5.56 mm	0.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Fastener 0.219" L x 0.730" H (5.56mm x 18.54mm)
