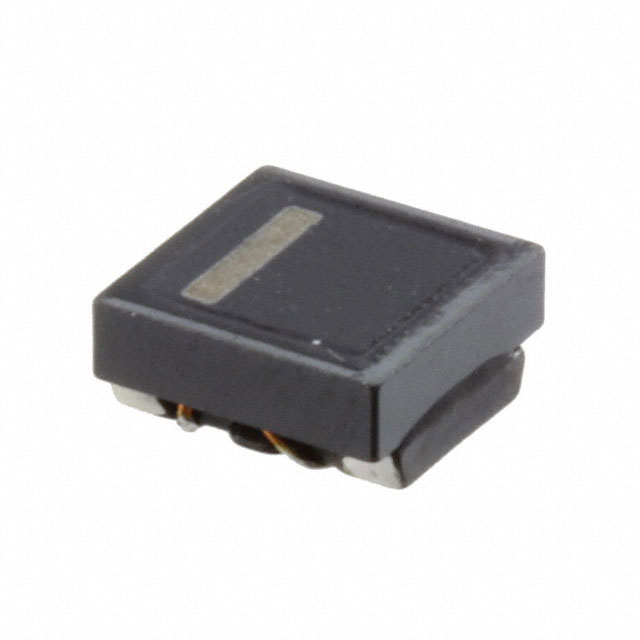

DLW32SH110XK2L
ObsoleteMurata Power Solutions Inc.
CMC 11UH 300MA 2LN SMD AEC-Q200
Deep-Dive with AI
Search across all available documentation for this part.
DLW32SH110XK2L
ObsoleteMurata Power Solutions Inc.
CMC 11UH 300MA 2LN SMD AEC-Q200
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLW32SH110XK2L |
|---|---|
| Current Rating (Max) [Max] | 300 mA |
| DC Resistance (DCR) (Max) [Max] | 400 mOhm |
| Height (Max) [Max] [z] | 0.098 in |
| Height (Max) [Max] [z] | 2.5 mm |
| Inductance @ Frequency | 11 çH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Horizontal |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Voltage Rating - DC | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.57 | |
| 10 | $ 0.44 | |||
| 25 | $ 0.40 | |||
| 50 | $ 0.39 | |||
| Digi-Reel® | 1 | $ 0.57 | ||
| 10 | $ 0.44 | |||
| 25 | $ 0.40 | |||
| 50 | $ 0.39 | |||
| Tape & Reel (TR) | 1500 | $ 0.39 | ||
Description
General part information
DLW32SH Series
11 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 300mA DCR 400mOhm
