71K504-200N5

Active

Rosenberger

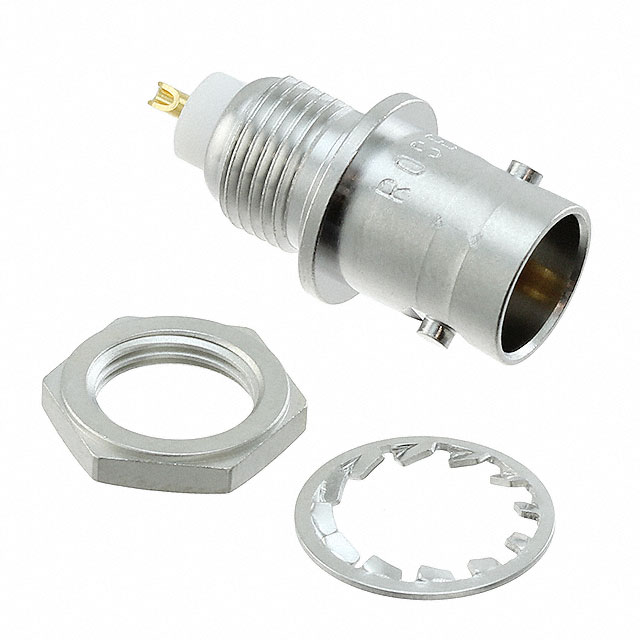

CONN BNC JACK STR 75OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN BNC JACK STR 75OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	71K504-200N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Extended Insulation
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	400 V

Part	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Frequency - Max [Max]	Contact Termination	Fastening Type	Center Contact Plating	Center Contact Material	Dielectric Material	Connector Style	Housing Color	Connector Type	Shield Termination	Body Finish	Impedance	Includes	Number of Ports	Voltage Rating	Mounting Feature	Features
Rosenberger 71K504-200N5	500	-65 ░C	165 °C	Brass	4 GHz	Solder Cup	Bayonet Lock	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	BNC	Silver	Female Socket Jack	Solder	White Bronze	75 Ohms	1 Connector 1 Lockwasher 1 Nut	1	400 V	Bulkhead - Rear Side Nut	Extended Insulation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	400	$ 10.07

General part information

BNC Connector Jack, Female Socket 75 Ohms Panel Mount Solder Cup
