TR9KR6000T00CIMR6B

Active

GlobTek, Inc.

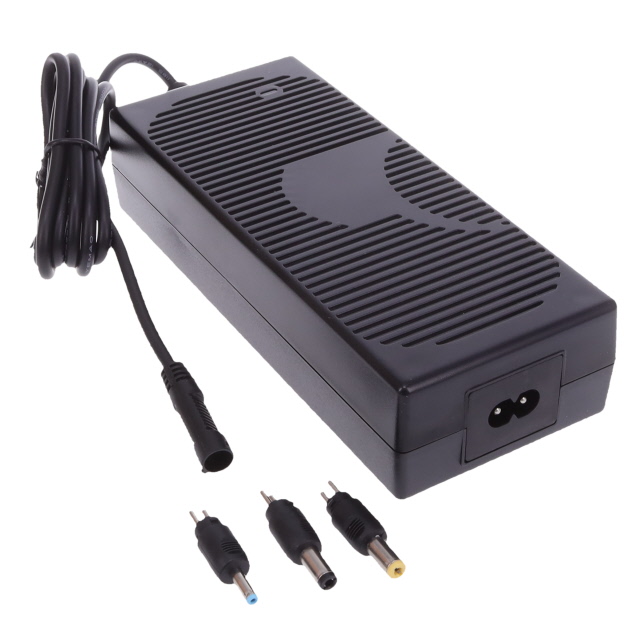

AC/DC DESKTOP ADAPTER 30V 180W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 30V 180W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9KR6000T00CIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	ETL, EAC, UKRSepro, CE, VCCI, cETLus, CB, CCC, S-Mark, PSE
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	6 A
Efficiency	Level VI, CoC Tier 1
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Power (Watts)	180 W
Region Utilized	International
Size / Dimension [x]	6.93 in
Size / Dimension [x]	176 mm
Size / Dimension [y]	2.91 "
Size / Dimension [y]	74 mm
Size / Dimension [z]	40 mm
Size / Dimension [z]	1.58 "
Standard Number	60601-1, 60335-1, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	30 VDC

Part	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]	Input Connector	No Load Power Consumption [Max]	Cord Length	Cord Length	Voltage - Output	Region Utilized	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Standard Number	Power (Watts)	Form	Input Type	Output Connector	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Applications
GlobTek, Inc. TR9KR6000T00CIMR6B	CB CCC CE cETLus EAC ETL PSE S-Mark UKRSepro VCCI	90 VAC	264 VAC	6 A	IEC 320-C8	150 mW	1.2 m	47.2 in	30 VDC	International	-10 °C	40 °C	CoC Tier 1 Level VI	60335-1 60601-1 60950-1 62368-1	180 W	Desktop (Class II)	Cord	1.3mm x 3.5mm Barrel Plug Kit	40 mm	6.93 in	2.91 "	74 mm	1.58 "	176 mm	Household Appliances ITE (Commercial) Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30V 180 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
