RP-153.3D

Active

RECOM Power

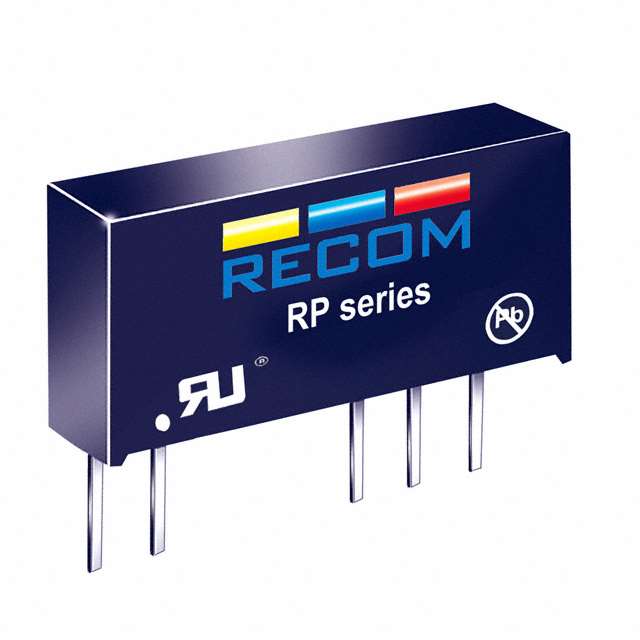

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 5.2KV UNREG 15VIN +/-3.3VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RP-153.3D

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 5.2KV UNREG 15VIN +/-3.3VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP-153.3D

Applications	ITE (Commercial), Medical
Current - Output (Max)	152 mA
Current - Output (Max)	152 mA
Efficiency	70 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 5 Leads
Size / Dimension [x]	0.77 in
Size / Dimension [x]	19.7 mm
Size / Dimension [y]	0.28 in
Size / Dimension [y]	7.1 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	16.5 V
Voltage - Input (Min) [Min]	13.5 V
Voltage - Isolation	5.2 kV
Voltage - Output 1	3.3 V
Voltage - Output 2	-3.3 V

RP-051509 Series

Isolated DC/DC Converters - Through Hole 1W DC/DC 5.2kV UNREG 5Vin 15Vout

Part	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Current - Output (Max)	Current - Output (Max)	Voltage - Isolation	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Type	Efficiency	Voltage - Output 2	Mounting Type	Applications	Voltage - Output 1	Package / Case	Current - Output (Max) [Max]	Current - Output (Max) [Min]	Current - Output (Max) [Max]
RECOM Power RP-153.3D	SCP	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	16.5 V	13.5 V	152 mA	152 mA	5.2 kV	2	85 °C	-40 °C	Isolated Module	70 %	-3.3 V	Through Hole	ITE (Commercial) Medical	3.3 V	7-SIP Module 5 Leads
RECOM Power RP-1209S	SCP	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	13.2 V	10.8 V			5.2 kV	1	85 °C	-40 °C	Isolated Module	75 %		Through Hole	ITE (Commercial) Medical	9 V	7-SIP Module 4 Leads
RECOM Power RP-1524S/P	SCP	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	16.5 V	13.5 V			5.2 kV	1	85 °C	-40 °C	Isolated Module	80 %		Through Hole	ITE (Commercial) Medical	24 V	7-SIP Module 4 Leads	42 mA
RECOM Power RP-2424D/P	SCP	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	26.4 V	21.6 V			5.2 kV	2	85 °C	-40 °C	Isolated Module	80 %	-24 V	Through Hole	ITE (Commercial) Medical	24 V	7-SIP Module 5 Leads	21 mA	21 mA
RECOM Power RP-0915S/P/X2	SCP	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	9.9 V	8.1 V			5.2 kV	1	85 °C	-40 °C	Isolated Module	80 %		Through Hole	ITE (Commercial) Medical	15 V	7-SIP Module 4 Leads	66 mA
RECOM Power RP-0512D	SCP	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	5.5 V	4.5 V			5.2 kV	2	85 °C	-40 °C	Isolated Module		-12 V	Through Hole	ITE (Commercial) Medical	12 V	7-SIP Module 5 Leads	42 mA		42 mA
RECOM Power RP-0909S/P	SCP	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	9.9 V	8.1 V			5.2 kV	1	85 °C	-40 °C	Isolated Module	75 %		Through Hole	ITE (Commercial) Medical	9 V	7-SIP Module 4 Leads
RECOM Power RP-053.3S/P	SCP	0.28 in	0.77 in	7.2 mm	0.4 "	10.2 mm	19.5 mm	5.5 V	4.5 V			5.2 kV	1	85 °C	-40 °C	Isolated Module	70 %		Through Hole	ITE (Commercial) Medical	3.3 V	7-SIP Module 4 Leads	303 mA
RECOM Power RP-1212S	SCP	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	13.2 V	10.8 V			5.2 kV	1	85 °C	-40 °C	Isolated Module	78 %		Through Hole	ITE (Commercial) Medical	12 V	7-SIP Module 4 Leads	84 mA
RECOM Power RP-1215D	SCP	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	13.2 V	10.8 V	33 mA		5.2 kV	2	85 °C	-40 °C	Isolated Module		-15 V	Through Hole	ITE (Commercial) Medical	15 V	7-SIP Module 5 Leads
