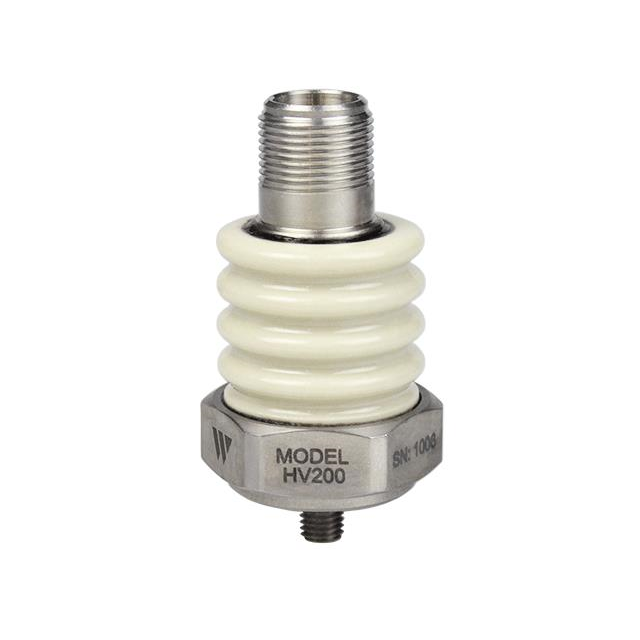

HV200
ActiveAmphenol Wilcoxon Sensing Technologies
ACCEL IEPE SENSOR 100MV/G 5%
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HV200 |
|---|---|
| Acceleration Range | 80 g |
| Axis [x] | X |
| Bandwidth [Max] | 12 kHz |
| Bandwidth [Min] | 0.5 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Analog Voltage |
| Package / Case | Module |
| Sensitivity (mV/g) | 100 mV/g |
| Type | Analog |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 518.00 | |
| 5 | $ 437.03 | |||
| 10 | $ 406.21 | |||
| 25 | $ 391.50 | |||
Description
General part information
HV2 Series
Accelerometer X Axis ±80g 0.5Hz ~ 12kHz
