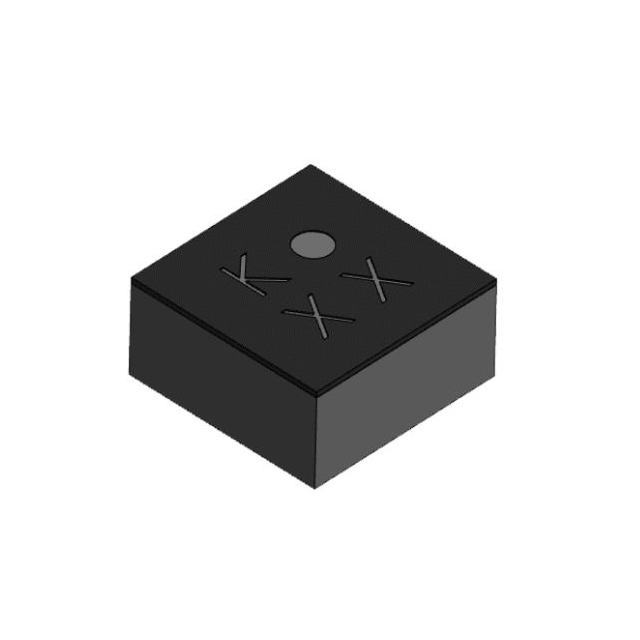

MMC5633NJL
ActiveMemsic Inc.
30 GAUSS, MONOLITHIC, HIGH PERFO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MMC5633NJL
ActiveMemsic Inc.
30 GAUSS, MONOLITHIC, HIGH PERFO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MMC5633NJL |
|---|---|
| Axis [x] | X |
| Axis [y] | Y |
| Axis [z] | Z |
| Bandwidth | 1 kHz |
| Current - Supply (Max) [Max] | 4 mA |
| Features | Temperature Compensated |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | I3C, I2C |
| Package / Case | WLBGA, 4-WFBGA |
| Resolution | 20 b |
| Sensing Range | 3 mT |
| Supplier Device Package | 4-WLP |
| Supplier Device Package [x] | 0.85 |
| Supplier Device Package [y] | 0.85 |
| Technology | Magnetoresistive |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.62 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.41 | |
| 10 | $ 1.05 | |||
| 25 | $ 0.84 | |||
| 100 | $ 0.77 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.58 | |||
| 5000 | $ 0.53 | |||
| Digi-Reel® | 1 | $ 1.41 | ||
| 10 | $ 1.05 | |||
| 25 | $ 0.84 | |||
| 100 | $ 0.77 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.58 | |||
| 5000 | $ 0.53 | |||
| Tape & Reel (TR) | 10000 | $ 0.49 | ||
| 20000 | $ 0.48 | |||
Description
General part information
MMC5633 Series
Magnetoresistive Sensor X, Y, Z Axis 4-WLP (0.85x0.85)
Documents
Technical documentation and resources
