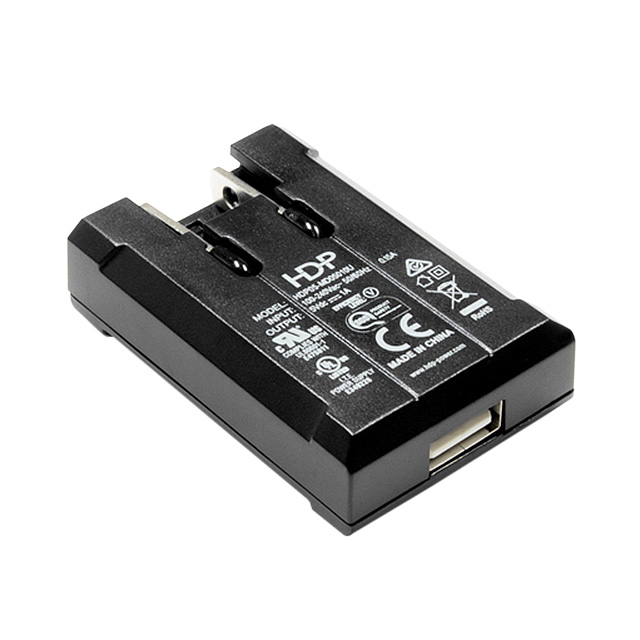

HDP05-MD-BUSB-4
ActiveHDP Power
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDP05-MD-BUSB-4
ActiveHDP Power
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDP05-MD-BUSB-4 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, SAA, cULus, C-Tick, CB |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Sold Separately) |
| Power (Watts) | 5 W |
| Region Utilized | International |
| Size / Dimension [x] | 60.3 mm |
| Size / Dimension [x] | 2.37 in |
| Size / Dimension [y] | 1.64 in |
| Size / Dimension [y] | 41.8 mm |
| Size / Dimension [z] | 0.73 in |
| Size / Dimension [z] | 18.5 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.68 | |
| 5 | $ 5.40 | |||
| 10 | $ 5.25 | |||
| 25 | $ 5.00 | |||
Description
General part information
HDP05 Series
5V 5 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
Documents
Technical documentation and resources
