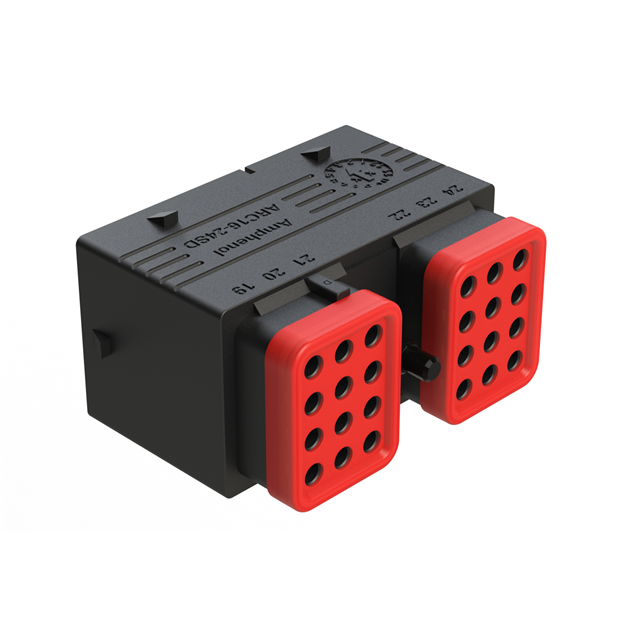

ARC16-24SDR-P013
ActiveAmphenol Sine Systems Corp
CONN PLUG HSG 24POS
Deep-Dive with AI
Search across all available documentation for this part.
ARC16-24SDR-P013
ActiveAmphenol Sine Systems Corp
CONN PLUG HSG 24POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ARC16-24SDR-P013 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Features | IP68, IP69K, Sealed |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 24 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.12 | |
| 10 | $ 15.40 | |||
| 25 | $ 14.44 | |||
| 50 | $ 13.75 | |||
| 150 | $ 12.72 | |||
| 300 | $ 12.12 | |||
| 600 | $ 11.54 | |||
Description
General part information
ARC16 Series
24 Rectangular Connectors - Housings Plug Black
Documents
Technical documentation and resources
