3PN2210B
ActiveVARIABLE, PLUG IN, 50HZ / 60HZ, 120V, 140V
Deep-Dive with AI
Search across all available documentation for this part.
3PN2210B
ActiveVARIABLE, PLUG IN, 50HZ / 60HZ, 120V, 140V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3PN2210B |
|---|---|
| Constant Current Load - Max | 3.08 kVA |
| Constant Current Load - Max [Max] | 22 A |
| Input Type | Plug, 6' Cord |
| Output Type | Receptacle |
| Size [x] | 10.85 " |
| Size [x] | 275.59 mm |
| Size [y] | 201.93 mm |
| Size [y] | 7.95 " |
| Size [z] | 160.27 mm |
| Size [z] | 6.31 " |
| Type | Bench |
| Voltage - Output | 140 VAC |
| Voltage - Supply | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
3PN2210 Series

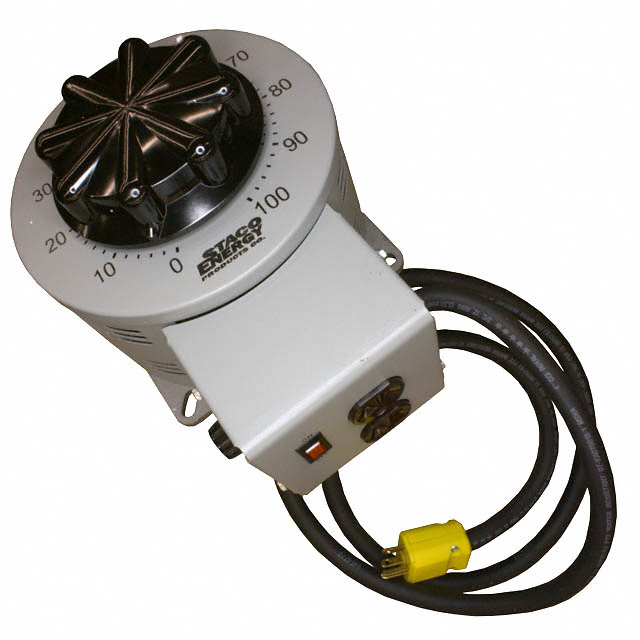

The 3PN2210B is a cased plug-in Variable Transformer features a ventilated steel case, input line cord and plug, fused NEMA rated output receptacle and an illuminated on/off switch. It is connected for output voltage increase with a clockwise rotation and the dials are graduated from 0-100% of the voltage setting. For application flexibility, two field modification kits have been added.
