0150261235

Active

Molex

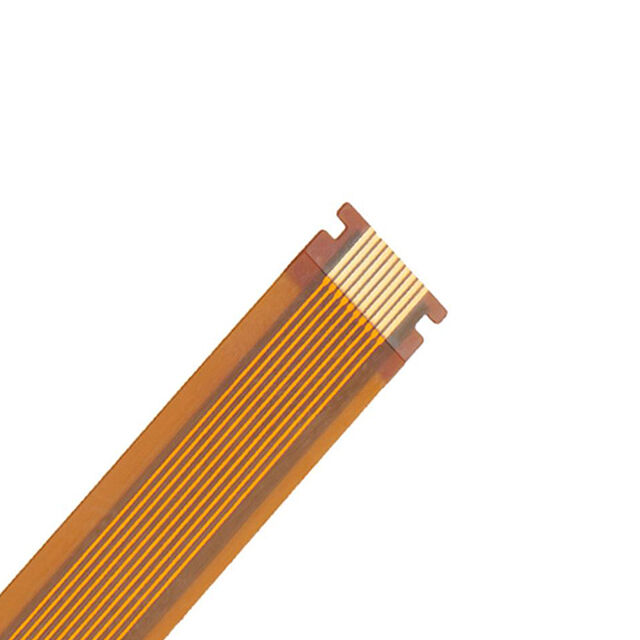

CABLE PREMO-1T 305MM

Search across all available documentation for this part.

Active

Molex

CABLE PREMO-1T 305MM

Technical Specifications

Parameters and characteristics for this part

Specification	0150261235

Cable Type	FPC, FFC
Length	304.8 mm
Length - Exposed Ends [x]	3.9 mm
Length - Exposed Ends [x]	0.154 in
Length [x]	12 in
Number of Conductors	35
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Termination Style	Pitch [x]	Pitch [x]	Length	Length [x]	Cable Type	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Number of Conductors	Length	Length [x]
Molex 0150261235	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	304.8 mm	12 in	FFC FPC	3.9 mm	0.154 in	35
Molex 0150260250	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	50.8 mm		FFC FPC	3.9 mm	0.154 in	50	2 in
Molex 0150260820	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in		7.992 in	FFC FPC	3.9 mm	0.154 in	20		203 mm
Molex 0150260620	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	152.4 mm		FFC FPC	3.9 mm	0.154 in	20	6 in
Molex 0150260230	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	50.8 mm		FFC FPC	3.9 mm	0.154 in	30	2 in
Molex 0150262430	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in		24 in	FFC FPC	3.9 mm	0.154 in	30		609.6 mm
Molex 0150262450	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in		24 in	FFC FPC	3.9 mm	0.154 in	50		609.6 mm
Molex 0150260260	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	50.8 mm		FFC FPC	3.9 mm	0.154 in	60	2 in
Molex 0150262480	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in		24 in	FFC FPC	3.9 mm	0.154 in	80		609.6 mm
Molex 0150261020

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 12.73

General part information

35 Position FFC, FPC Cable 0.020" (0.50mm) 12.0" (304.8mm)
