71036-505
ActiveLaird Thermal Systems, Inc.

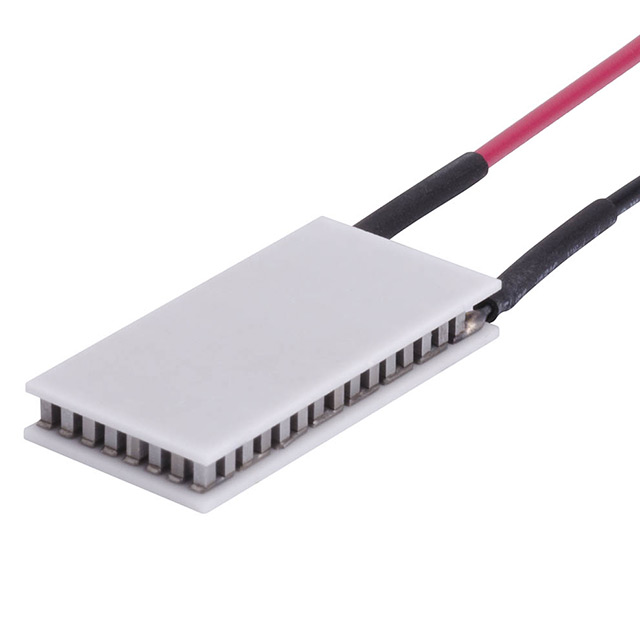

PELTIER CP08,63,06,L1,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
71036-505
ActiveLaird Thermal Systems, Inc.
PELTIER CP08,63,06,L1,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 71036-505 |
|---|---|
| Current - Max [Max] | 2.1 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 3.4 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 9 W |
| Resistance | 3.13 Ohms |
| Size / Dimension [x] | 24.6 mm |
| Size / Dimension [y] | 12.3 mm |
| Voltage - Max [Max] | 7.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.89 | |
| 20 | $ 33.74 | |||
| 100 | $ 30.81 | |||
Description
General part information
71036 Series
Peltier Module 9.0W @ 25°C 2.1 A 80°C
