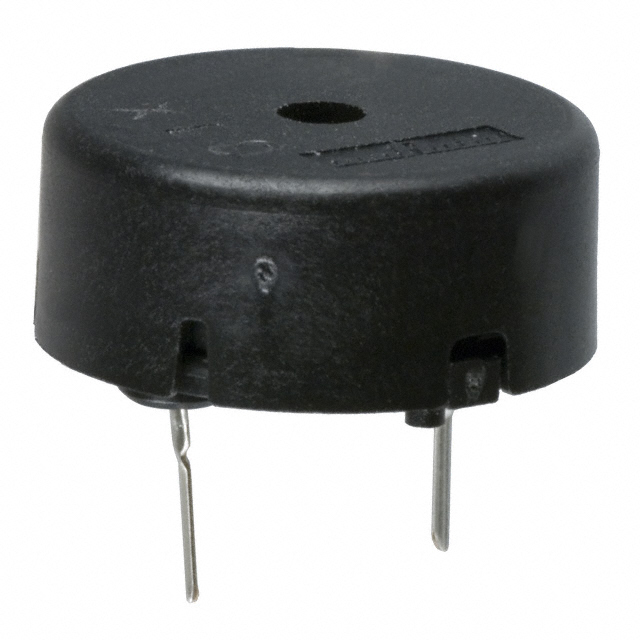

PKM17EPPH4001-B0

Obsolete

Murata Power Solutions Inc.

BUZZER PIEZO 1.5V 17MM TH

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

BUZZER PIEZO 1.5V 17MM TH

Technical Specifications

Parameters and characteristics for this part

Specification	PKM17EPPH4001-B0

Driver Circuitry	Externally Driven, Transducer
Frequency	4 kHz
Height - Seated (Max) [Max] [z]	0.343 in
Height - Seated (Max) [Max] [z]	8.7 mm
Input Type	Zero-Peak Signal
Mounting Type	Through Hole
Operating Mode	Ringer
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Port Location	Top
Size / Dimension [diameter]	0.669 in
Size / Dimension [diameter]	17 mm
Sound Pressure Level (SPL)	72 dB
Technology	Piezo
Termination	PC Pins
Voltage - Rated	1.5 VDC
Voltage Range [Max]	25 VDC

Part	Sound Pressure Level (SPL)	Operating Mode	Mounting Type	Voltage - Rated	Voltage Range [Max]	Port Location	Size / Dimension [diameter]	Size / Dimension [diameter]	Frequency	Input Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Driver Circuitry	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Technology
Murata Power Solutions Inc. PKM17EPPH4002-B0	72 dB	Single Tone	Through Hole	1.5 VDC	25 VDC	Top	0.669 in	17 mm	4 kHz	Zero-Peak Signal	PC Pins	-20 C	70 °C	Externally Driven Transducer	0.343 in	8.7 mm	Piezo
Murata Power Solutions Inc. PKM17EPPH4001-B0	72 dB	Ringer	Through Hole	1.5 VDC	25 VDC	Top	0.669 in	17 mm	4 kHz	Zero-Peak Signal	PC Pins	-20 C	70 °C	Externally Driven Transducer	0.343 in	8.7 mm	Piezo

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buzzers Transducer, Externally Driven Piezo 1.5 V 4kHz 72dB @ 1.5V, 10cm Through Hole PC Pins
