RP12-11012SAR/P

Active

RECOM Power

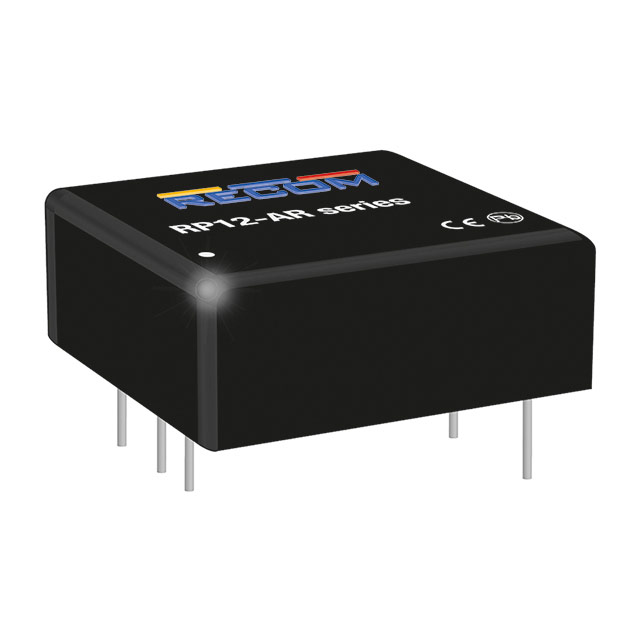

ISOLATED THROUGH HOLE DC/DC CONVERTER, RAILWAY, DIP, 4:1, 12 W, 1 OUTPUT, 12 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RP12-11012SAR/P

Active

RECOM Power

ISOLATED THROUGH HOLE DC/DC CONVERTER, RAILWAY, DIP, 4:1, 12 W, 1 OUTPUT, 12 V

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP12-11012SAR/P

Applications	Railway, ITE (Commercial)
Approval Agency	CE
Control Features	Active High, Enable
Current - Output (Max) [Max]	1 A
Efficiency	89 %
Features	OVP, UVLO, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	12 W
Size / Dimension [x]	1 in
Size / Dimension [x]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.39 in
Size / Dimension [z]	9.9 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

RP12-1103.3 Series

Isolated DC/DC Converters - Through Hole 12W 36-160Vin 24Vout 500mA

Part	Voltage - Output 1	Type	Applications	Control Features	Voltage - Isolation	Efficiency	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Features	Power (Watts)	Package / Case	Number of Outputs	Current - Output (Max) [Max]	Approval Agency	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
RECOM Power RP12-1103.3SAR/P	3.3 V	Isolated Module	ITE (Commercial) Railway	Active High Enable	3000 V	88 %	160 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	36 V	OCP OVP Remote On/Off SCP UVLO	12 W	6-DIP Module	1	3.63 A	CE	Through Hole	-40 °C	100 °C
RECOM Power RP12-11015SAR/N	15 V	Isolated Module	ITE (Commercial) Railway	Active Low Enable	3000 V	89 %	160 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	36 V	OCP OVP Remote On/Off SCP UVLO	12 W	6-DIP Module	1	800 mA	CE	Through Hole	-40 °C	100 °C
RECOM Power RP12-11012DAR/N	12 V	Isolated Module	ITE (Commercial) Railway	Active Low Enable	3000 V	89 %	160 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	36 V	OCP OVP Remote On/Off SCP UVLO	12 W	6-DIP Module	2		CE	Through Hole	-40 °C	100 °C	500 mA	500 mA	-12 V
RECOM Power RP12-11005SAR/N	5 V	Isolated Module	ITE (Commercial) Railway	Active Low Enable	3000 V	89 %	160 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	36 V	OCP OVP Remote On/Off SCP UVLO	12 W	6-DIP Module	1	2.4 A	CE	Through Hole	-40 °C	100 °C
RECOM Power RP12-11012SAR/P	12 V	Isolated Module	ITE (Commercial) Railway	Active High Enable	3000 V	89 %	160 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	36 V	OCP OVP Remote On/Off SCP UVLO	12 W	6-DIP Module	1	1 A	CE	Through Hole	-40 °C	100 °C
RECOM Power RP12-11015SAR/P	15 V	Isolated Module	ITE (Commercial) Railway	Active High Enable	3000 V	89 %	160 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	36 V	OCP OVP Remote On/Off SCP UVLO	12 W	6-DIP Module	1	800 mA	CE	Through Hole	-40 °C	100 °C
RECOM Power RP12-11012DAR/P	12 V	Isolated Module	ITE (Commercial) Railway	Active High Enable	3000 V	89 %	160 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	36 V	OCP OVP Remote On/Off SCP UVLO	12 W	6-DIP Module	2		CE	Through Hole	-40 °C	100 °C	500 mA	500 mA	-12 V
RECOM Power RP12-11024SAR/P	24 V	Isolated Module	ITE (Commercial) Railway	Active High Enable	3000 V	90 %	160 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	36 V	OCP OVP Remote On/Off SCP UVLO	12 W	6-DIP Module	1	500 mA	CE	Through Hole	-40 °C	100 °C
