Q8P7BXXG02E
ActiveAPEM

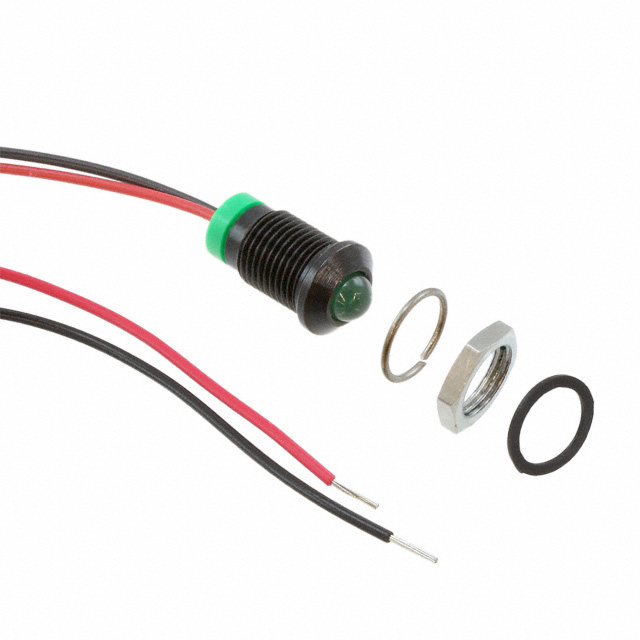

LED PM INDICATOR PROMINENT GRN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q8P7BXXG02E
ActiveAPEM
LED PM INDICATOR PROMINENT GRN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q8P7BXXG02E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 60 mcd |
| Panel Cutout Dimensions [custom] | 0.31 in |
| Panel Cutout Dimensions [custom] | 7.87 mm |
| Panel Cutout Shape | Round |
| Termination Style | Wire Leads - 7.87" (200.00mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 15.31 | |
| 25 | $ 11.09 | |||
| 100 | $ 10.06 | |||
| 500 | $ 9.22 | |||
| 1000 | $ 8.95 | |||
Description
General part information
Q8P7BXXG Series
LED Panel Indicator Green Diffused 100° 2V 20mA Wire Leads - 7.87" (200.00mm)
Documents
Technical documentation and resources
