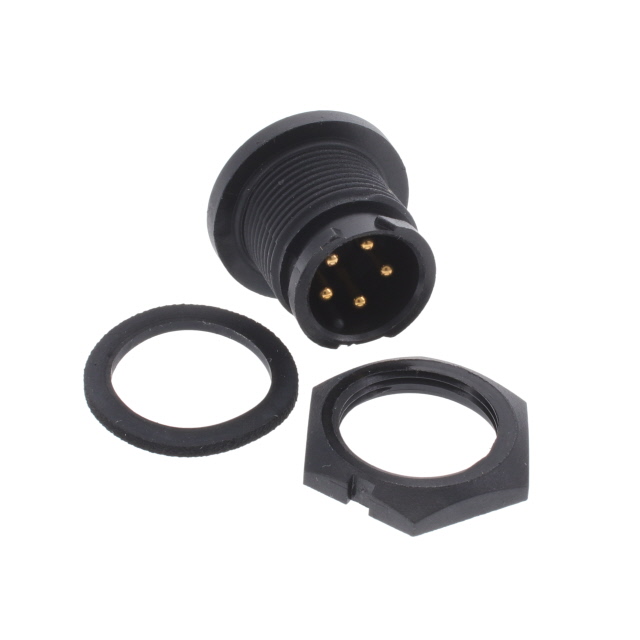

W7281-5PG-P-3ES

Active

Conxall/Switchcraft

CONN RCPT MALE 5POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 5POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	W7281-5PG-P-3ES

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Solder
Voltage Rating	300 VAC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Backshell Material, Plating	Ingress Protection	Primary Material	Mounting Feature	Contact Material	Fastening Type	Insert Material	Contact Finish - Mating	Connector Type	Features	Color	Orientation	Current Rating (Amps)	Applications	Voltage Rating	Termination	Shielding
Conxall/Switchcraft W7281-5PG-P-3ES	85 °C	-40 °C	Panel Mount Through Hole	Thermoplastic	IP66 IP67 IP68	Plastic	Bulkhead - Front Side Nut	Copper Alloy	Bayonet Lock	Thermoplastic	Gold	Male Pins Receptacle	UV Resistant	Black	Keyed	Varies by Wire Gauge	Automotive Communication Systems Instrumentation	300 VAC	Solder	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 9.51

General part information

5 Position Circular Connector Receptacle, Male Pins Solder
