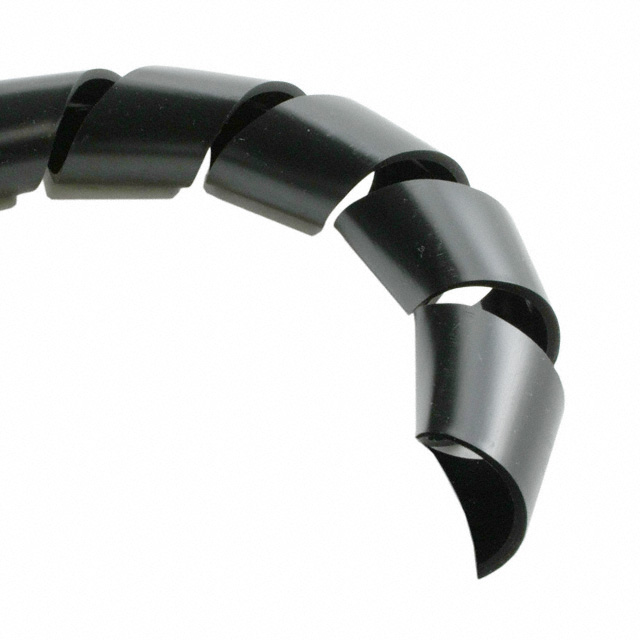

SW45 BK008

Active

ALPHA WIRE

SPIRAL WRAP 0.84" X 25' BLACK

Search across all available documentation for this part.

Active

ALPHA WIRE

SPIRAL WRAP 0.84" X 25' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	SW45 BK008

Color	Black
Diameter - Inside, Non-Expanded [diameter]	21.34 mm
Diameter - Inside, Non-Expanded [diameter]	0.84 in
Diameter - Outside, Non-Expanded [diameter]	25.4 mm
Diameter - Outside, Non-Expanded [diameter]	1 "
Environment Protection	UV Resistant
Length [x]	25 ft
Length [x]	7.62 m
Liquid Protection	Moisture Resistant
Material	Polyethylene (PE)
Operating Temperature [custom]	-66 °C, 88 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness	2.03 mm
Wall Thickness	0.08 in

Part	Environment Protection	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Type Attributes	Type	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Length [x]	Length [x]	Operating Temperature [custom]	Color	Wall Thickness	Wall Thickness	Liquid Protection	Material	Length	Length
ALPHA WIRE SW45 BK002	UV Resistant	21.34 mm	0.84 in	Harness	Spiral Wrap	25.4 mm	1 "	500 '	152.4 m	-66 °C 88 °C	Black	2.03 mm	0.08 in	Moisture Resistant	Polyethylene (PE)
ALPHA WIRE SW45 BK008	UV Resistant	21.34 mm	0.84 in	Harness	Spiral Wrap	25.4 mm	1 "	25 ft	7.62 m	-66 °C 88 °C	Black	2.03 mm	0.08 in	Moisture Resistant	Polyethylene (PE)
ALPHA WIRE SW45 BK005	UV Resistant	21.34 mm	0.84 in	Harness	Spiral Wrap	25.4 mm	1 "			-66 °C 88 °C	Black	2.03 mm	0.08 in	Moisture Resistant	Polyethylene (PE)	100 ft	30.48 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Spiral Wrap 1.000" (25.40mm) X 25.00' (7.62m) Black
