TL9320AF400QG
ActiveE-Switch

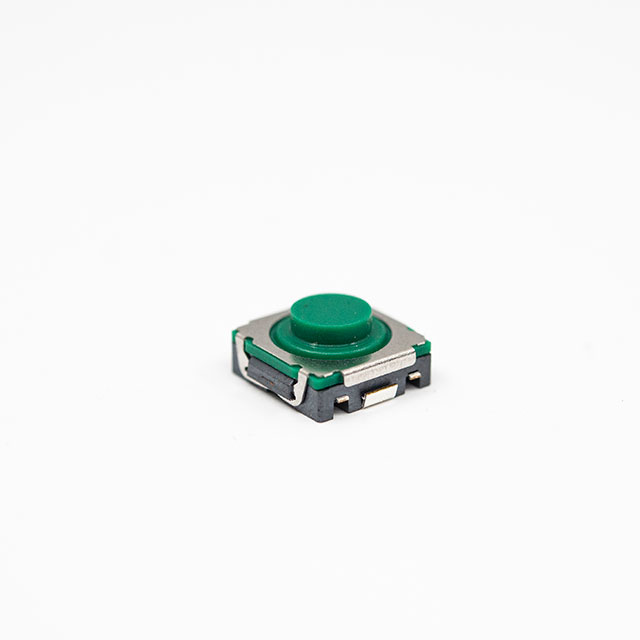

TACTILE SWITCH, GULL WING, TOP ACTUATED, SURFACE MOUNT, ROUND BUTTON, 400 GF, 50MA AT 16VDC
Deep-Dive with AI
Search across all available documentation for this part.
TL9320AF400QG
ActiveE-Switch
TACTILE SWITCH, GULL WING, TOP ACTUATED, SURFACE MOUNT, ROUND BUTTON, 400 GF, 50MA AT 16VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TL9320AF400QG |
|---|---|
| Actuator Height off PCB, Vertical [z] | 3.95 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 16 VDC |
| Illumination | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 400 gf |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline [x] | 8.4 mm |
| Outline [y] | 8.4 mm |
| Switch Function | Off-Mom |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.86 | |
| 10 | $ 0.82 | |||
| 25 | $ 0.77 | |||
| 100 | $ 0.67 | |||
| 250 | $ 0.61 | |||
| 500 | $ 0.56 | |||
| Digi-Reel® | 1 | $ 0.86 | ||
| 10 | $ 0.82 | |||
| 25 | $ 0.77 | |||
| 100 | $ 0.67 | |||
| 250 | $ 0.61 | |||
| 500 | $ 0.56 | |||
| Tape & Reel (TR) | 1000 | $ 0.52 | ||
| 3000 | $ 0.48 | |||
| 5000 | $ 0.44 | |||
| 10000 | $ 0.41 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.98 | |
| 10 | $ 0.87 | |||
| 25 | $ 0.82 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.76 | |||
| 250 | $ 0.73 | |||
Description
General part information
TL9320 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
