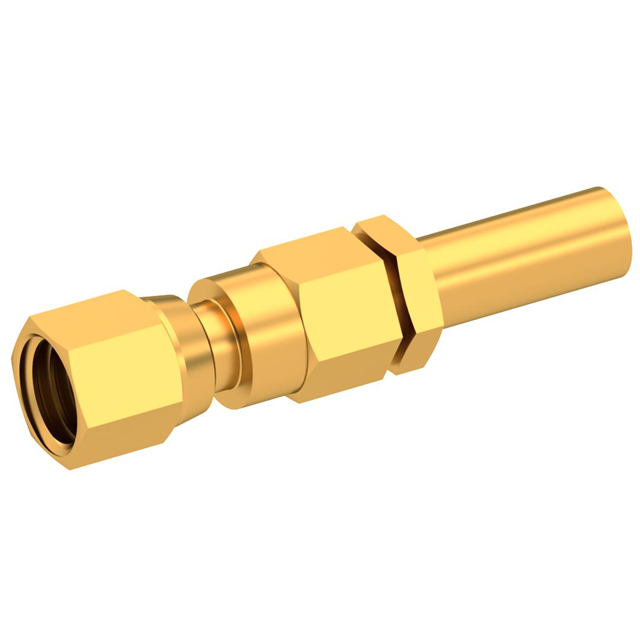

1002-1571-003

Active

Radiall USA, Inc.

SMC M STR NA CR 2.6/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC M STR NA CR 2.6/50S

Technical Specifications

Parameters and characteristics for this part

Specification	1002-1571-003

Body Finish	Gold
Body Material	Brass
Cable Group	179, RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.25 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Mating Cycles	Center Contact Plating	Insertion Loss	Impedance	Number of Ports	Body Material	Connector Style	Contact Termination	Dielectric Material	Shield Termination	Mounting Type	Body Finish	Cable Group	Frequency - Max [Max]	Housing Color	Connector Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material
Radiall USA, Inc. 1002-1571-003	500	Gold	0.25 dB	50 Ohms	1	Brass	SMC	Crimp	Polytetrafluoroethylene (PTFE)	Crimp	Free Hanging (In-Line)	Gold	179 316 RG-174	10 GHz	Gold	Female Socket Plug	335 V	-65 ░C	165 °C	Beryllium Copper
Radiall USA, Inc. 1002-1571-019	500	Gold	0.25 dB	50 Ohms	1	Brass	SMC	Crimp	Polytetrafluoroethylene (PTFE)	Crimp	Free Hanging (In-Line)	Gold	RD-316	10 GHz	Gold	Female Socket Plug	335 V	-65 ░C	165 °C	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
