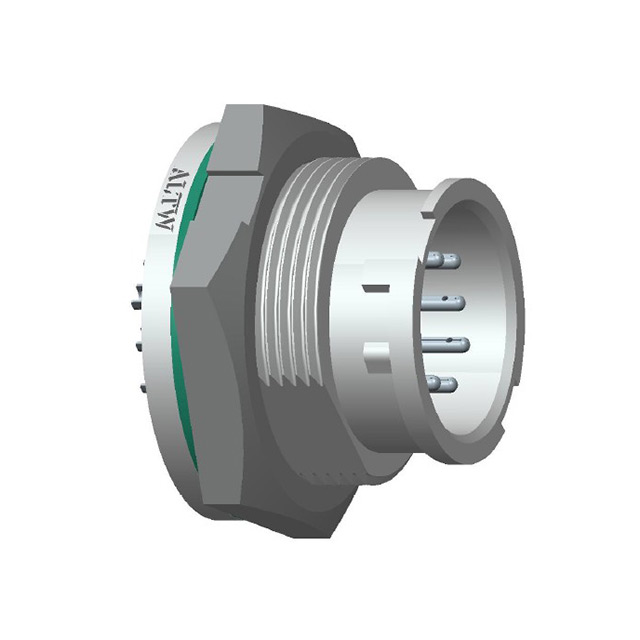

ACD-10PMMS-LC7001

Active

Amphenol LTW

CONN RCPT MALE 10P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 10P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	ACD-10PMMS-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Voltage Rating	300 VDC

Part	Fastening Type	Contact Material	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell Material	Ingress Protection	Voltage Rating	Mounting Feature	Current Rating (Amps)	Contact Finish - Mating	Shielding	Primary Material	Shell Size - Insert	Orientation	Number of Positions	Color
Amphenol LTW ACD-10PMMS-LC7001	Bayonet Lock	Copper Alloy	Polyamide (PA) Nylon Glass Filled	-40 °C	105 ░C	Male Pins Receptacle	Glass Filled Nylon Polyamide (PA)	IP67 - Dust Tight Waterproof	300 VDC	Bulkhead - Front Side Nut	5 A	Gold	Unshielded	Plastic	C	Keyed	10	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle, Male Pins Solder Cup
