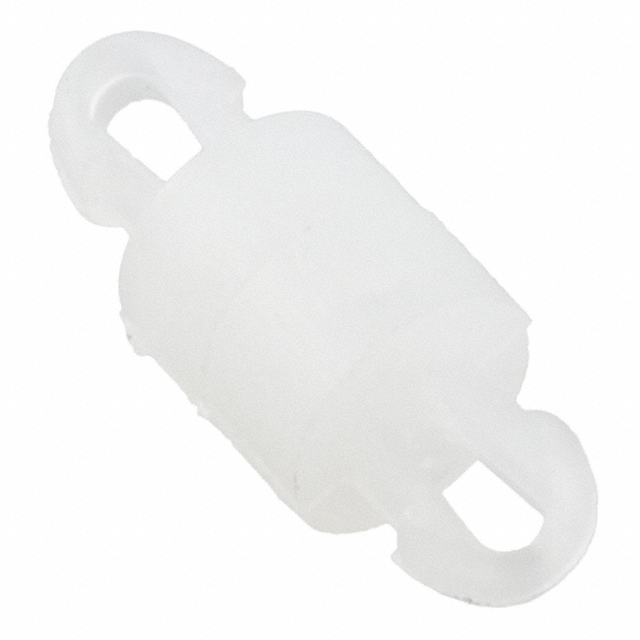

DLCBST-3-01
ActiveEssentra Access Solutions
PCB SPACER SUPPORT, NYLON 6.6, 4.8MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DLCBST-3-01
ActiveEssentra Access Solutions
PCB SPACER SUPPORT, NYLON 6.6, 4.8MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DLCBST-3-01 |
|---|---|
| Between Board Height | 0.188 " |
| Between Board Height | 4.78 mm |
| Between Board Height | 0.1875 " |
| Holding Type | Snap Lock |
| Length - Overall [x] | 0.475 in |
| Length - Overall [x] | 12.06 mm |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 2.54 mm |
| Mounting Hole Diameter [diameter] | 0.1 in |
| Mounting Panel Thickness | 0.064 in |
| Mounting Panel Thickness | 1.63 mm |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 2.54 mm |
| Support Hole Diameter [diameter] | 0.1 in |
| Support Panel Thickness | 1.63 mm |
| Support Panel Thickness | 0.064 " |
DLCBST Series
| Part | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] | Support Panel Thickness | Support Panel Thickness | Mounting Type | Mounting Panel Thickness | Mounting Panel Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Holding Type | Between Board Height | Between Board Height | Between Board Height | Material | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Essentra Access Solutions | 2.54 mm | 0.1 in | 1.63 mm | 0.064 " | Snap Lock | 0.064 in | 1.63 mm | 2.54 mm | 0.1 in | Snap Lock | 0.438 in | 0.4375 in | 11.13 mm | Nylon | 0.723 " | 18.36 mm |
Essentra Access Solutions | 2.54 mm | 0.1 in | 1.63 mm | 0.064 " | Snap Lock | 0.064 in | 1.63 mm | 2.54 mm | 0.1 in | Snap Lock | 0.625 in | 15.88 mm | 0.625 in | Nylon | 0.912 in | 23.16 mm |
Essentra Access Solutions | 2.54 mm | 0.1 in | 1.63 mm | 0.064 " | Snap Lock | 0.064 in | 1.63 mm | 2.54 mm | 0.1 in | Snap Lock | 0.063 " | 1.6 mm | 0.0625 " | Nylon | 0.349 in | 8.86 mm |
Essentra Access Solutions | 2.54 mm | 0.1 in | 1.63 mm | 0.064 " | Snap Lock | 0.064 in | 1.63 mm | 2.54 mm | 0.1 in | Snap Lock | 0.188 " | 4.78 mm | 0.1875 " | Nylon | 0.475 in | 12.06 mm |
Essentra Access Solutions | 2.54 mm | 0.1 in | 1.63 mm | 0.064 " | Snap Lock | 0.064 in | 1.63 mm | 2.54 mm | 0.1 in | Snap Lock | 0.125 in | 3.18 mm | 0.125 in | Nylon | 0.412 " | 10.46 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DLCBST Series
Board Support Snap Lock / Snap Lock Nylon 0.188" (4.78mm) 3/16"
