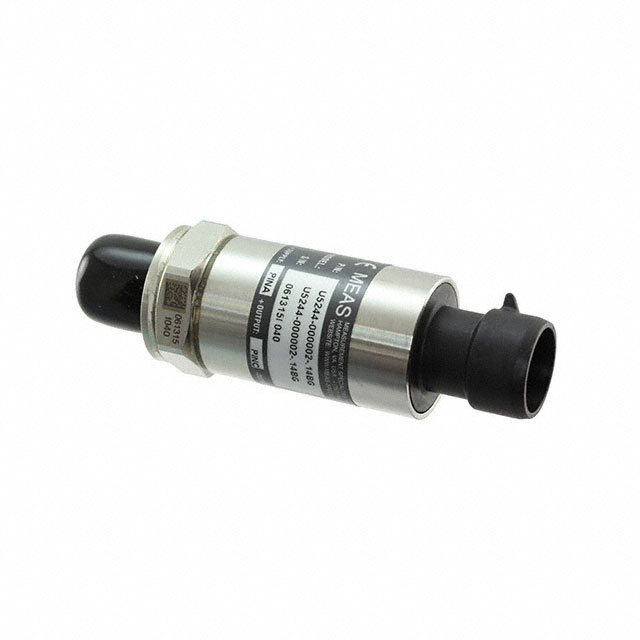

U5244-000002-.14BG

Active

TE Connectivity Measurement Specialties

SENSOR

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Output [Min]	Output [Max]	Operating Pressure	Operating Pressure	Applications	Output Type	Termination Style	Features	Port Style	Package / Case	Maximum Pressure	Maximum Pressure	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Size	Port Size	Pressure Type
TE Connectivity Measurement Specialties U5244-000005-200PA	125 °C	-40 °C	NPT	0.25 "	6.35 mm	Male	30 VDC	8 V	1 V	5 V	1378.95 kPa	200 PSI	Industrial Automation	Analog Voltage	Connector	Temperature Compensated	Threaded	Cylinder	600 PSI	4136.85 kPa	0.1 %
TE Connectivity Measurement Specialties U5244-000002-.14BG	125 °C	-40 °C					30 VDC	8 V	1 V	5 V	14 kPa	2.03 PSI	Industrial Automation	Analog Voltage	Connector	Temperature Compensated	Threaded	Cylinder			0.5 %	6.09 PSI	42 kPa	BSPP Male	6.35 mm	Vented Gauge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 144.60

General part information

SENSOR

Technical documentation and resources
