09200321520

Active

HARTING Technology Group

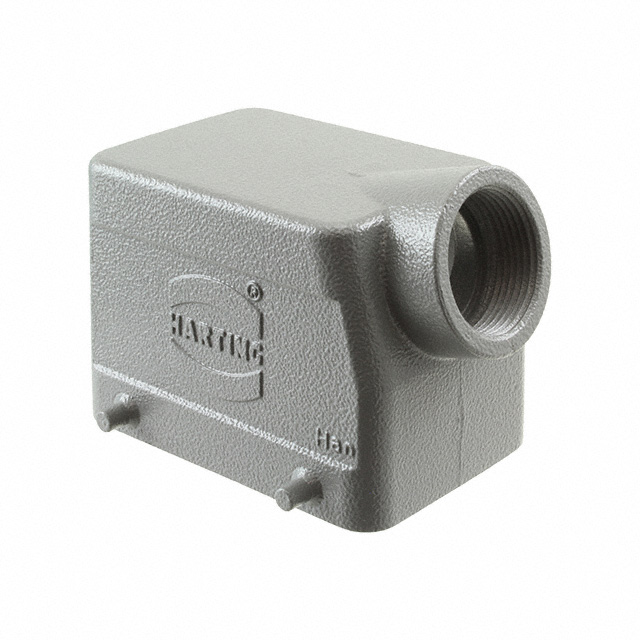

HEAVY DUTY CONNECTOR, PG21 SIDE ENTRY, 4 PEGS, LOW PROFILE, HOOD, SIDE ENTRY, ALUMINUM BODY

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, PG21 SIDE ENTRY, 4 PEGS, LOW PROFILE, HOOD, SIDE ENTRY, ALUMINUM BODY

Technical Specifications

Parameters and characteristics for this part

Specification	09200321520

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	32 A
Size / Dimension [x]	82 mm
Size / Dimension [x]	3.228 "
Size / Dimension [y]	2.205 "
Size / Dimension [y]	56 mm
Size / Dimension [z]	60 mm
Size / Dimension [z]	2.362 "
Style	Side Entry
Thread Size	PG21

Part	Thread Size	Housing Color	Housing Material	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Size	Housing Finish	Lock Location	Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Connector Type
HARTING Technology Group 09200321520	PG21	Gray	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	32 A	Powder Coated	Locking Clip (2) on Base Bottom	Side Entry	82 mm	2.205 "	60 mm	3.228 "	2.362 "	56 mm	Hood

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry PG21 32A IP65 - Dust Tight, Water Resistant
