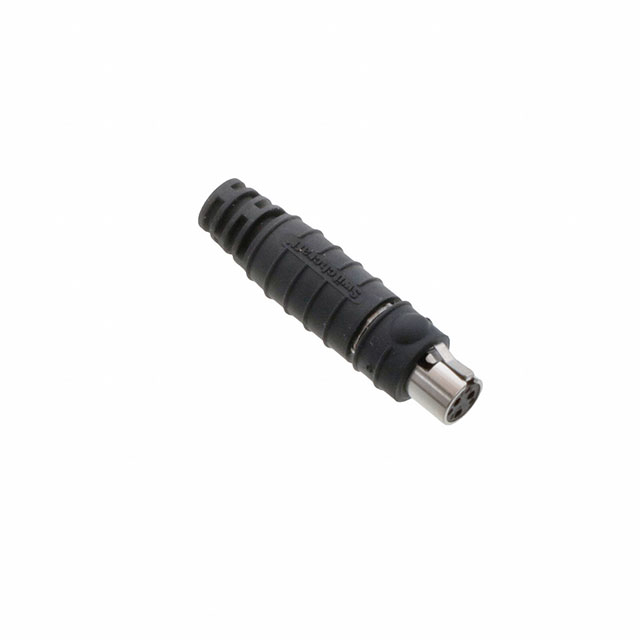

TA3FS15

Active

Switchcraft Inc.

CONN PLUG FMALE MINI XLR 3P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE MINI XLR 3P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	TA3FS15

Applications	Audio, Medical
Backshell Material, Plating	Thermoplastic, Thermoplastic Rubber
Cable Opening [Max] [diameter]	4.06 mm
Cable Opening [Max] [diameter]	0.16 in
Cable Opening [Min] [diameter]	0.14 in
Cable Opening [Min] [diameter]	3.56 mm
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Cable Clamp
Ingress Protection	IP66, IP65
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Voltage Rating	125 VAC

Part	Fastening Type	Orientation	Contact Material	Insert Material	Connector Type	Backshell Material, Plating	Voltage Rating	Primary Material	Color	Current Rating (Amps)	Contact Finish - Mating	Shell Material	Ingress Protection	Shell Size - Insert	Shell Finish	Applications	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Features	Mounting Type	Cable Opening [custom]	Cable Opening [custom]	Material Flammability Rating	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Shielding
Switchcraft Inc. TA3FS15	Latch Lock	Keyed	Copper Alloy	Thermoplastic	Female Sockets Plug	Thermoplastic Thermoplastic Rubber	125 VAC	Metal	Black Silver	5 A	Silver	Copper Alloy	IP65 IP66	Mini XLR	Nickel	Audio Medical	4.06 mm	0.16 in	0.14 in	3.56 mm	Backshell Cable Clamp Strain Relief	Free Hanging (In-Line)
Switchcraft Inc. TA3FSH	Latch Lock	Keyed	Copper Alloy	Thermoplastic	Female Sockets Plug	Copper Alloy Nickel	125 VAC	Metal	Silver	5 A	Silver	Copper Alloy		Mini XLR	Nickel	Audio Medical					Backshell Cable Clamp Ground	Free Hanging (In-Line)	7.37 mm	0.29 in	UL94 V-0	Solder	85 °C	-55 °C	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 15.21

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup
