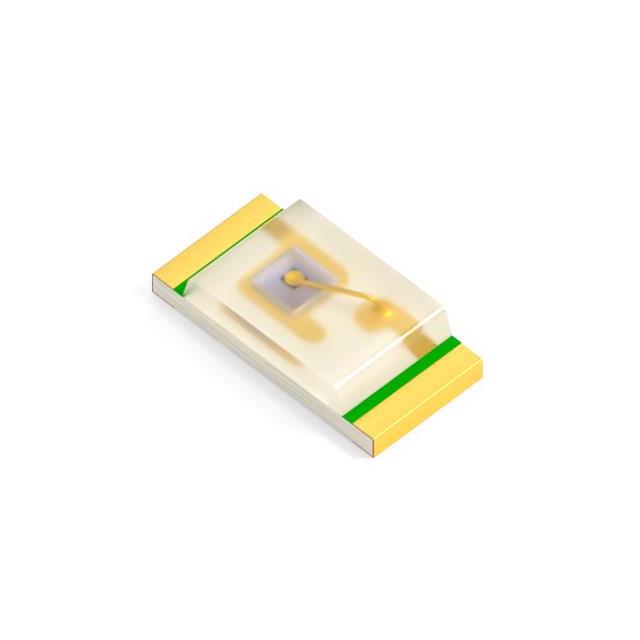

XZVGR68W-3
ActiveSunLED
LED GREEN CLEAR 0402 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZVGR68W-3
ActiveSunLED
LED GREEN CLEAR 0402 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZVGR68W-3 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 0.25 mm |
| Lens Color | Colorless |
| Lens Size [x] | 0.6 mm |
| Lens Size [y] | 0.5 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 34 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [y] | 0.5 mm |
| Supplier Device Package | 0402 |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 571 nm |
| Wavelength - Peak | 572 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.47 | |
| 10 | $ 0.31 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| 2000 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.47 | ||
| 10 | $ 0.31 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| 2000 | $ 0.11 | |||
| Tape & Reel (TR) | 4000 | $ 0.11 | ||
| 8000 | $ 0.10 | |||
| 12000 | $ 0.09 | |||
| 28000 | $ 0.09 | |||
| 100000 | $ 0.08 | |||
Description
General part information
XZVGR68 Series
Green 571nm LED Indication - Discrete 2V 0402 (1005 Metric)
