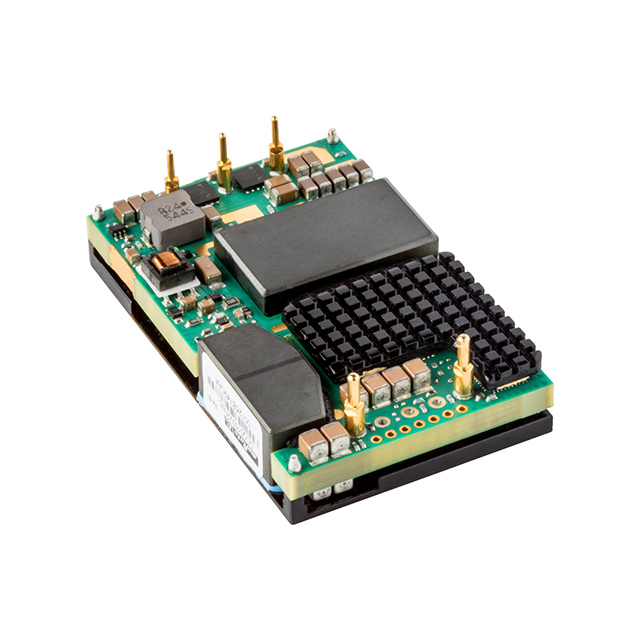

DAQ0150V2NBC
ActiveMurata Power Solutions Inc.
MODULE DC-DC 48VIN 1-OUT 12V 50A 600W 15-PIN TRAY
Deep-Dive with AI
Search across all available documentation for this part.
DAQ0150V2NBC
ActiveMurata Power Solutions Inc.
MODULE DC-DC 48VIN 1-OUT 12V 50A 600W 15-PIN TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DAQ0150V2NBC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 50 A |
| Efficiency | 96 % |
| Features | OVP, OTP, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Quarter Brick |
| Power (Watts) | 600 W |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [z] | 13.2 mm |
| Size / Dimension [z] | 0.52 " |
| Supplier Device Package | Quarter Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DAQ0150 Series
Isolated Module DC DC Converter 1 Output 12V 50A 36V - 75V Input
