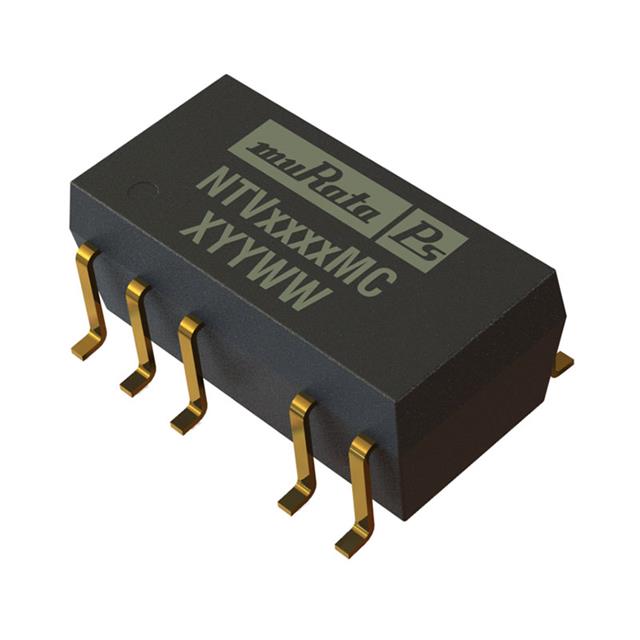

NTV0515MC-R

Active

Murata Power Solutions Inc.

DC/DC SMD 5V-15V 1W 3KV DUAL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC/DC SMD 5V-15V 1W 3KV DUAL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Type	Mounting Type	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Input (Max) [Max]	Number of Outputs	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Applications	Current - Output (Max)	Current - Output (Max)	Voltage - Output 1	Package / Case	Voltage - Isolation	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Murata Power Solutions Inc. NTV0505MC	Isolated Module	Surface Mount	-5 V	85 °C	-40 °C	SCP	5.5 V	2	71 %	7.6 mm	15.2 mm	0.3 "	0.6 in	0.26 "	6.6 mm	4.5 V	ITE (Commercial)	100 mA	100 mA	5 V	22-SMD Module 10 Leads	3000 V
Murata Power Solutions Inc. NTV0512MC	Isolated Module	Surface Mount	-12 V	85 °C	-40 °C	SCP	5.5 V	2	79 %	7.6 mm	15.2 mm	0.3 "	0.6 in	0.26 "	6.6 mm	4.5 V	ITE (Commercial)			12 V	22-SMD Module 10 Leads	3000 V	42 mA	42 mA
Murata Power Solutions Inc. NTV0509MC	Isolated Module	Surface Mount	-9 V	85 °C	-40 °C	SCP	5.5 V	2	77 %	7.6 mm	15.2 mm	0.3 "	0.6 in	0.26 "	6.6 mm	4.5 V	ITE (Commercial)		55 mA	9 V	22-SMD Module 10 Leads	3000 V
Murata Power Solutions Inc. NTV0509MC-R	Isolated Module	Surface Mount	-9 V	85 °C	-40 °C	SCP	5.5 V	2	77 %	7.6 mm	15.2 mm	0.3 "	0.6 in	0.26 "	6.6 mm	4.5 V	ITE (Commercial)		55 mA	9 V	22-SMD Module 10 Leads	3000 V
Murata Power Solutions Inc. NTV0515MC-R	Isolated Module	Surface Mount	-15 V	85 °C	-40 °C	SCP	5.5 V	2	80 %	7.6 mm	15.2 mm	0.3 "	0.6 in	0.26 "	6.6 mm	4.5 V	ITE (Commercial)		33 mA	15 V	22-SMD Module 10 Leads	3000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 8.66
Newark	Each	250	$ 9.27

General part information

DC/DC SMD 5V-15V 1W 3KV DUAL ROHS COMPLIANT: YES
