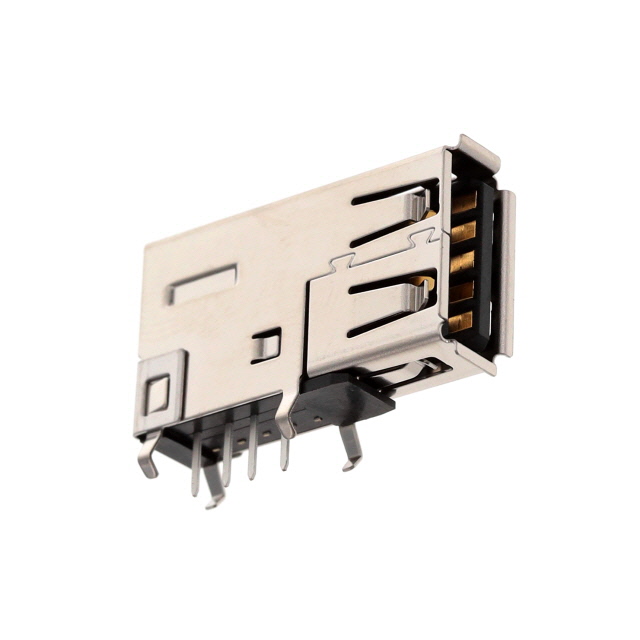

GSB191217FHR

Active

Amphenol ICC (Commercial Products)

USB 2.0 STANDARD A, UPRIGHT DIP

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

USB 2.0 STANDARD A, UPRIGHT DIP

Technical Specifications

Parameters and characteristics for this part

Specification	GSB191217FHR

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Vertical, Flag
Mounting Type	Through Hole, Right Angle
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Brass
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 V

Part	Shielding	Termination	Voltage - Rated	Connector Type	Insulation Color	Mounting Feature	Specifications	Shell/Shielding Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Number of Ports	Mounting Type	Contact Finish	Number of Contacts [custom]	Gender
Amphenol ICC (Commercial Products) GSB191217FHR	Shielded	Solder	30 V	USB-A (USB TYPE-A)	Black	Flag Vertical	USB 2.0	Brass	UL94 V-0	85 °C	-40 °C	1500	1	Through Hole Right Angle	Gold	4	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
