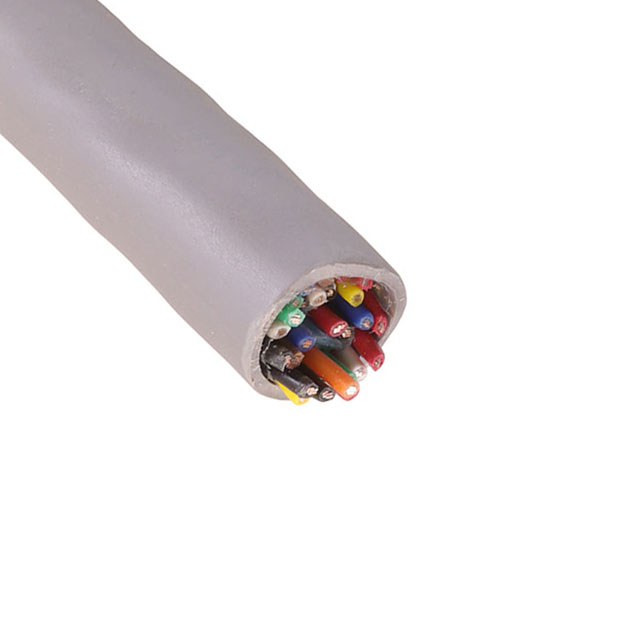

1327C SL001

Active

ALPHA WIRE

MULTI-PAIR 30COND 22AWG

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 30COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1327C SL001

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	11.68 mm
Jacket (Insulation) Diameter [diameter]	0.46 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	30 (15 Pair Twisted)
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

Part	Usage	Wire Gauge	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Cable Type	Jacket Color	Number of Conductors	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Length	Length	Length [x]	Length [x]
ALPHA WIRE 1327C SL001	Communication Control	22 AWG	Poly-Vinyl Chloride (PVC)	7	30 AWG	Copper Tinned	Multi-Pair	Slate	30 (15 Pair Twisted)	Poly-Vinyl Chloride (PVC)	0.04 in	1.016 mm	-20 C	80 C	11.68 mm	0.46 in	300 V	1000 ft	304.8 m
ALPHA WIRE 1327C SL005	Communication Control	22 AWG	Poly-Vinyl Chloride (PVC)	7	30 AWG	Copper Tinned	Multi-Pair	Slate	30 (15 Pair Twisted)	Poly-Vinyl Chloride (PVC)	0.04 in	1.016 mm	-20 C	80 C	11.68 mm	0.46 in	300 V			30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 6.43

General part information

30 (15 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG 1000.0' (304.8m)
