Technical Specifications
Parameters and characteristics for this part
| Specification | 3SMC9.0A TR13 PBFREE |
|---|---|
| Applications | General Purpose |
| Current - Peak Pulse (10/1000µs) | 194.8 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |

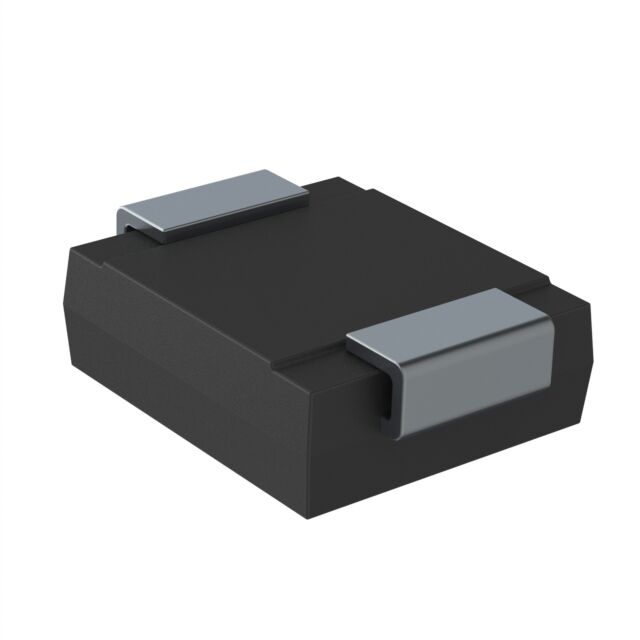

| Package / Case | SMC, DO-214AB |
| Power - Peak Pulse | 3000 W |
| Power - Peak Pulse | 3 kW |
| Power Line Protection | False |
| Supplier Device Package | SMC |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 10 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 15.4 V |
| Voltage - Reverse Standoff (Typ) | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.05 | |
| 10 | $ 1.98 | |||
| 100 | $ 1.37 | |||
| 500 | $ 1.11 | |||
| 1000 | $ 1.03 | |||
| Digi-Reel® | 1 | $ 3.05 | ||
| 10 | $ 1.98 | |||
| 100 | $ 1.37 | |||
| 500 | $ 1.11 | |||
| 1000 | $ 1.03 | |||
| Tape & Reel (TR) | 3000 | $ 0.94 | ||
Description
General part information
3SMC9.0 Series
15.4V Clamp 194.8A Ipp Tvs Diode Surface Mount SMC
