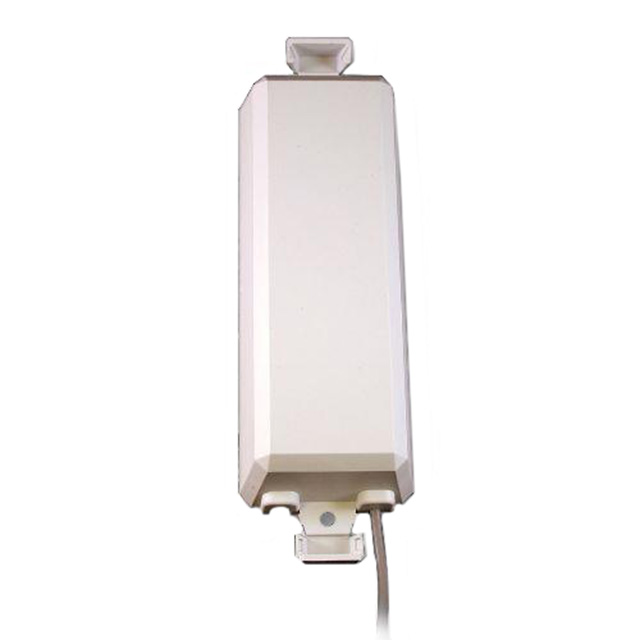

PRO-OS-291
ObsoleteAbracon LLC
RF ANT 434MHZ/892MHZ CAB CHAS 3M
Deep-Dive with AI
Search across all available documentation for this part.
PRO-OS-291
ObsoleteAbracon LLC
RF ANT 434MHZ/892MHZ CAB CHAS 3M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PRO-OS-291 |
|---|---|
| Applications | GSM, UMTS |
| Features | Cable |
| Features | 3 m |
| Frequency (Center/Band) | 2.1 GHz, 892 MHz, 434 MHz, 1.85 GHz |
| Frequency Range | 434 MHz |
| Frequency Range [Max] | 1.99 GHz, 2.17 GHz, 960 MHz |
| Frequency Range [Min] | 863 MHz, 1.71 GHz, 2.11 GHz |
| Gain | 5.5 dBi |
| Height (Max) | 26 mm |
| Height (Max) [Max] [z] | 1.024 in |
| Mounting Type | Chassis Mount |
| Number of Bands | 6 |
| Return Loss | -7 dB |
| RF Family/Standard | Cellular |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PRO-OS Series
434MHz, 892MHz, 1.85GHz, 2.1GHz GSM, UMTS RF Antenna 434MHz, 863MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.11GHz ~ 2.17GHz 5.5dBi SMA Male Chassis Mount
Documents
Technical documentation and resources
No documents available
