H75,GY

Active

Serpac

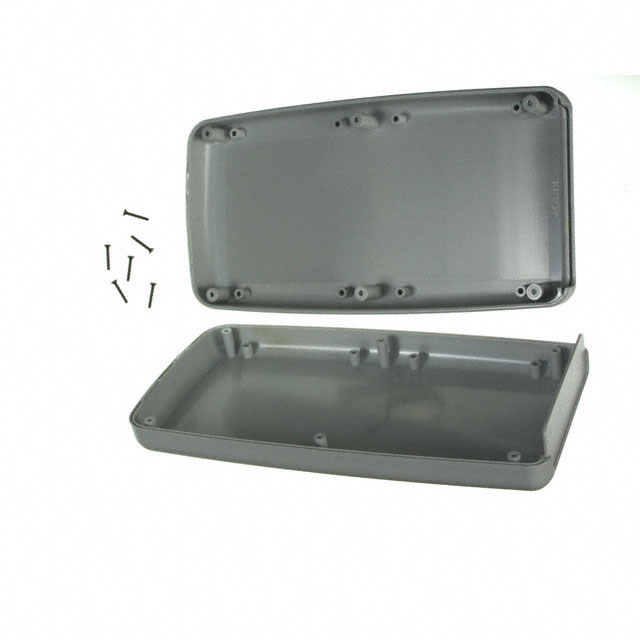

BOX ABS GRAY 7.2"L X 3.65"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 7.2"L X 3.65"W

Technical Specifications

Parameters and characteristics for this part

Specification	H75,GY

Area (L x W) [custom]	170 cm²
Area (L x W) [custom]	26.3 in²
Color	Gray
Container Type	Box
Features	PCB Supports
Height [diameter]	1.26 in
Height [diameter]	32 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	7.2 in
Size / Dimension [x]	182.88 mm
Size / Dimension [y]	92.71 mm
Size / Dimension [y]	3.65 in
Thickness	2.03 mm
Thickness	0.08 "
Weight	58.97 g
Weight	0.13 lbs

Part	Height [diameter]	Height [diameter]	Color	Material Flammability Rating	Weight	Weight	Features	Material	Area (L x W) [custom]	Area (L x W) [custom]	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Thickness	Thickness	Container Type
Serpac H75,GY	1.26 in	32 mm	Gray	UL94 HB	58.97 g	0.13 lbs	PCB Supports	Plastic ABS	170 cm²	26.3 in²	IP40	7.2 in	92.71 mm	3.65 in	182.88 mm	2.03 mm	0.08 "	Box
Serpac H75,BK	1.26 in	32 mm	Black	UL94 HB	58.97 g	0.13 lbs	PCB Supports	Plastic ABS	170 cm²	26.3 in²	IP40	7.2 in	92.71 mm	3.65 in	182.88 mm	2.03 mm	0.08 "	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.03

General part information

Box Plastic, ABS Gray Hand Held, Split Sides and End Panel(s) 7.200" L x 3.650" W (182.88mm x 92.71mm) X 1.260" (32.00mm)

Technical documentation and resources

No documents available
