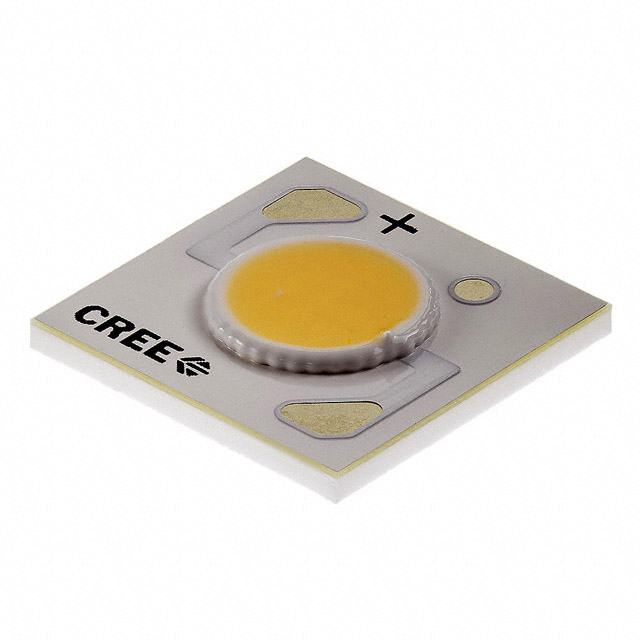

CXA1304-0000-000C00C20E2

Active

Cree LED

HIGH BRIGHTNESS LED, XLAMP CXA1304 SERIES, WHITE, 115 °, 440 LM, 5700 K, 1 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Technical Data Sheet EN +1

CXA1304-0000-000C00C20E2

Active

Cree LED

HIGH BRIGHTNESS LED, XLAMP CXA1304 SERIES, WHITE, 115 °, 440 LM, 5700 K, 1 A

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXA1304-0000-000C00C20E2

CCT (K)	5700 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	70
Current - Max [Max]	1 A
Current - Test	400 mA
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	6 mm Dia
Lumens/Watt @ Current - Test	127 lm/W
Luminous Flux @ Current/Temperature	458 lm
Size / Dimension [x]	13.35 mm
Size / Dimension [y]	13.35 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	9 V

CXA1304 Series

...

Part	Lens Type	Type	Configuration	Light Emitting Surface (LES) [diameter]	Viewing Angle	Lumens/Watt @ Current - Test	Height [z]	Color	CRI (Color Rendering Index)	Current - Test	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Temperature - Test	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]
Cree LED CXA1304-0000-000C00C20E2	Flat	Chip On Board (COB)	Square	6 mm Dia	115 °	127 lm/W	1.7 mm	Cool White	70	400 mA	13.35 mm	13.35 mm	5700 K	1 A	9 V	458 lm	85 °C
Cree LED CXA1304-0000-000F0U9440F	Flat	Chip On Board (COB)	Square	6 mm Dia	115 °	89 lm/W	1.7 mm	Neutral White	90	200 mA	13.35 mm	13.35 mm	4000 K	500 mA	18 V		85 °C	308 lm	330 lm
Cree LED CXA1304-0000-000F0Y940E8	Flat	Chip On Board (COB)	Square	6 mm Dia	115 °	86 lm/W	1.7 mm	Warm White	93	200 mA	13.35 mm	13.35 mm	2700 K	500 mA	18 V	310 lm	85 °C	290 lm	330 lm
Cree LED CXA1304-0000-000N0UB250H	Flat	Chip On Board (COB)	Square	6 mm Dia	115 °	107 lm/W	1.7 mm	Cool White	90	100 mA	13.35 mm	13.35 mm	5000 K	250 mA	37 V	395 lm	85 °C
Cree LED CXA1304-0000-000C0HB20E3	Flat	Chip On Board (COB)	Square	6 mm Dia	115 °	110 lm/W	1.7 mm	Cool White	80	400 mA	13.35 mm	13.35 mm	5000 K	1 A	9 V	395 lm	85 °C
Cree LED CXA1304-0000-000C0HB40E1	Flat	Chip On Board (COB)	Square	6 mm Dia	115 °	118 lm/W	1.7 mm	Cool White	80	400 mA	13.35 mm	13.35 mm	6500 K	1 A	9 V	425 lm	85 °C
Cree LED CXA1304-0000-000N00C450H	Flat	Chip On Board (COB)	Square	6 mm Dia	115 °	133 lm/W	1.7 mm	Cool White	70	100 mA	13.35 mm	13.35 mm	5000 K	250 mA	37 V	493 lm	85 °C
Cree LED CXA1304-0000-000F0UA20E3	Flat	Chip On Board (COB)	Square	6 mm Dia	115 °	95 lm/W	1.7 mm	Cool White	90	200 mA	13.35 mm	13.35 mm	5000 K	500 mA	18 V	343 lm	85 °C
Cree LED CXA1304-0000-000N0HC240G	Flat	Chip On Board (COB)	Square	6 mm Dia	115 °	127 lm/W	1.7 mm	Neutral White	80	100 mA	13.35 mm	13.35 mm	4000 K	250 mA	36 V	458 lm	85 °C
Cree LED CXA1304-0000-000F0YA435F	Flat	Chip On Board (COB)	Square	6 mm Dia	115 °	102 lm/W	1.7 mm	Warm White	93	200 mA	13.35 mm	13.35 mm		500 mA	18 V	368 lm	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 1.12
Newark	Each	100	$ 1.32
		500	$ 1.23
		1000	$ 1.10
		2500	$ 0.89
		5000	$ 0.86

Description

General part information

CXA1304 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXA1304 White, Cool Square

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Technical Data Sheet EN

Datasheet
