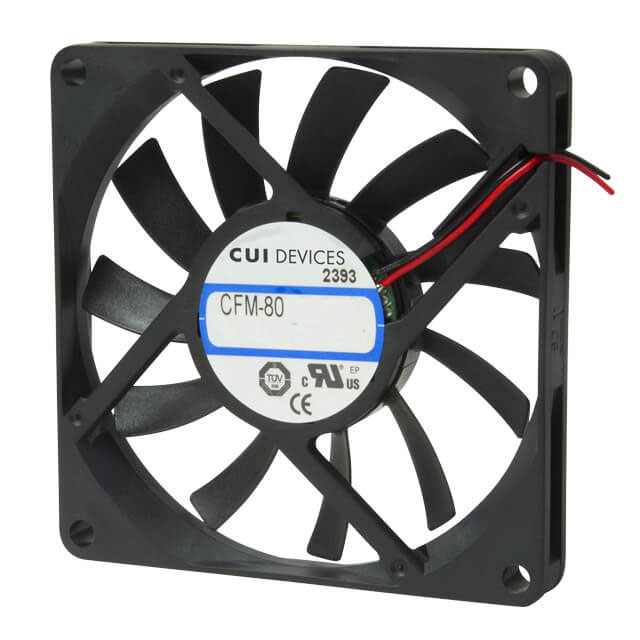

CFM-8015-13-20

Obsolete

CUI Devices

FAN AXIAL 80X15.4MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFM-8015-13-20

Obsolete

CUI Devices

FAN AXIAL 80X15.4MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFM-8015-13-20

Air Flow	44 CFM
Air Flow	1.23 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.18 A
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	39.8 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2.88 W
RPM	3500 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	40 Pa
Static Pressure	0.16 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Weight	0.132 lb
Weight	59.87 g
Width [x]	15.4 mm

CFM-8015 Series

Part	Features	Weight	Weight	Current Rating (Amps)	Fan Type	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Approval Agency	Width [x]	Voltage - Rated	Noise	Termination	Size / Dimension [y]	Size / Dimension [x]	RPM	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Static Pressure	Static Pressure	Lifetime @ Temp.	Power (Watts)	Material - Blade	Bearing Type
CUI Devices CFM-8015-13-22	Auto Restart PWM Control Speed Sensor (Tach)	0.132 lb	59.87 g	0.18 A	Tubeaxial	44 CFM	1.23 m³/min	13.8 VDC	6 VDC	CE cURus TUV	15.4 mm	12 VDC	39.8 dB(A)	4 Wire Leads	80 mm	80 mm	3500 RPM	70 °C	70 °C	-10 °C	-10 °C	40 Pa	0.16 in H2O	70000 Hrs	2.88 W	Polybutylene Terephthalate (PBT)	Ball
CUI Devices CFM-8015V-130-347	Auto Restart	0.15 lbs	68.04 g	188 mA	Tubeaxial	37 CFM	1.04 mł/min	13.8 VDC	4.5 V	CE cURus TUV	15 mm	12 VDC	34.7 dB(A)	2 Wire Leads	80 mm	80 mm	3000 RPM	70 °C	70 °C	-10 °C	-10 °C	34.9 Pa	0.14 in H2O	70000 Hrs	2.26 W	Polybutylene Terephthalate (PBT)
CUI Devices CFM-8015V-227-320-20	Auto Restart Speed Sensor (Tach)	0.15 lbs	68.04 g	75 mA	Tubeaxial	33.6 CFM	0.941 mł/min			CE cURus TUV	15 mm	24 VDC	32 dB	3 Wire Leads	80 mm	80 mm	2700 RPM	70 °C	70 °C	-10 °C	-10 °C	27.4 Pa	0.11 in H2O	70000 Hrs	1.8 W	Polybutylene Terephthalate (PBT)
CUI Devices CFM-8015V-130-347-20	Auto Restart Speed Sensor (Tach)	0.15 lbs	68.04 g	188 mA	Tubeaxial	37.1 CFM	1.04 mł/min	13.8 VDC	4.5 V	CE cURus TUV	15 mm	12 VDC	34.7 dB(A)	3 Wire Leads	80 mm	80 mm	3000 RPM	70 °C	70 °C	-10 °C	-10 °C	34.9 Pa	0.14 in H2O	70000 Hrs	2.26 W	Polybutylene Terephthalate (PBT)
CUI Devices CFM-8015V-224-308-11	Auto Restart	0.15 lbs	68.04 g	0.065 A	Tubeaxial	30 CFM	0.84 mł/min			CE cURus TUV	15 mm	24 VDC	30.8 dB(A)	3 Wire Leads	80 mm	80 mm	2400 RPM	70 °C	70 °C	-10 °C	-10 °C	22.4 Pa	0.09 in H2O	70000 Hrs	1.56 W	Polybutylene Terephthalate (PBT)
CUI Devices CFM-8015-13-20	Auto Restart Speed Sensor (Tach)	0.132 lb	59.87 g	0.18 A	Tubeaxial	44 CFM	1.23 m³/min	13.8 VDC	6 VDC	CE cURus TUV	15.4 mm	12 VDC	39.8 dB(A)	3 Wire Leads	80 mm	80 mm	3500 RPM	70 °C	70 °C	-10 °C	-10 °C	40 Pa	0.16 in H2O	70000 Hrs	2.88 W	Polybutylene Terephthalate (PBT)	Ball
CUI Devices CFM-8015V-230-347-20	Auto Restart Speed Sensor (Tach)	0.15 lbs	68.04 g	0.106 A	Tubeaxial	37.1 CFM	1.04 mł/min			CE cURus TUV	15 mm	24 VDC	34.7 dB(A)	3 Wire Leads	80 mm	80 mm	3000 RPM	70 °C	70 °C	-10 °C	-10 °C	34.9 Pa	0.14 in H2O	70000 Hrs	2.55 W	Polybutylene Terephthalate (PBT)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CFM-8015 Series

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 44.0 CFM (1.23m³/min) 3 Wire Leads
