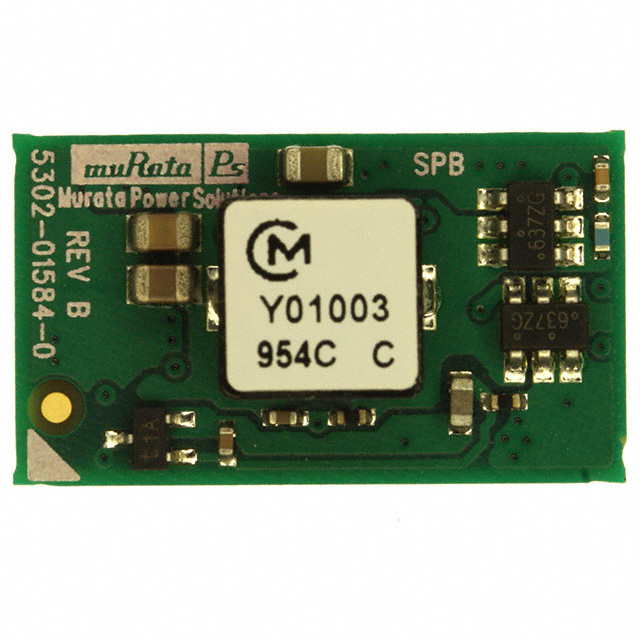

OKY-T/3-W5P-C

NRND

Murata Power Solutions Inc.

NON ISOLATED POL DC/DC CONVERTER, 9.9 W, 752.5 MV, 3.63 V, 3 A, ADJUSTABLE, DOSA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OKY-T/3-W5P-C

NRND

Murata Power Solutions Inc.

NON ISOLATED POL DC/DC CONVERTER, 9.9 W, 752.5 MV, 3.63 V, 3 A, ADJUSTABLE, DOSA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OKY-T/3-W5P-C

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	3 A
Efficiency	94.4 %
Features	OTP, UVLO, SCP, Remote On/Off, OCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	5-SMD Module
Power (Watts)	10 W
Size / Dimension [x]	20.8 mm
Size / Dimension [x]	0.82 "
Size / Dimension [y]	11.9 mm
Size / Dimension [y]	0.47 "
Size / Dimension [z]	7.1 mm
Size / Dimension [z]	0.28 "
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	2.4 V
Voltage - Output 1 [Max]	3.63 V
Voltage - Output 1 [Min]	0.75 V

OKY-T Series

Part	Voltage - Input (Min) [Min]	Mounting Type	Applications	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Features	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Type	Power (Watts)	Number of Outputs	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Control Features
Murata Power Solutions Inc. OKY-T/16-D12P-C	8.3 V	Surface Mount	ITE (Commercial)	7-SMD Module 6 Leads	85 °C	-40 °C	OCP OTP Remote On/Off SCP UVLO	16 A	14 V	Non-Isolated PoL Module	80 W	1	5.5 V	0.75 V	1.3 "	0.53 in	8.4 mm	33 mm	0.33 in	13.5 mm	94 %	Active High Enable
Murata Power Solutions Inc. OKY-T/16-W5N-C	2.4 V	Surface Mount	ITE (Commercial)	7-SMD Module 6 Leads	85 °C	-40 °C	OCP OTP Remote On/Off SCP UVLO	16 A	5.5 V	Non-Isolated PoL Module	53 W	1	3.63 V	0.75 V	1.3 "	0.53 in	8.3 mm	33 mm	0.33 in	13.5 mm	95 %
Murata Power Solutions Inc. OKY-T/10-D12P-C	8.3 V	Surface Mount	ITE (Commercial)	7-SMD Module 6 Leads	85 °C	-40 °C	OCP OTP Remote On/Off SCP UVLO	10 A	14 V	Non-Isolated PoL Module	50 W	1	5.5 V	0.75 V	1.3 "	0.53 in	8.4 mm	33 mm	0.33 in	13.5 mm	94.5 %	Active High Enable
Murata Power Solutions Inc. OKY-T/3-D12P-C	8.3 V	Surface Mount	ITE (Commercial)	5-SMD Module	85 °C	-40 °C	OCP OTP Remote On/Off SCP UVLO	3 A	14 V	Non-Isolated PoL Module	17 W	1	5.5 V	0.75 V	0.82 "	0.47 "	7.1 mm	20.8 mm	0.28 "	11.9 mm	93 %	Active High Enable
Murata Power Solutions Inc. OKY-T/3-D12N-C	8.3 V	Surface Mount	ITE (Commercial)	5-SMD Module	85 °C	-40 °C	OCP OTP Remote On/Off SCP UVLO	3 A	14 V	Non-Isolated PoL Module	17 W	1	5.5 V	0.75 V	0.82 "	0.47 "	7.1 mm	20.8 mm	0.28 "	11.9 mm	93 %
Murata Power Solutions Inc. OKY-T/10-W5N-C	2.4 V	Surface Mount	ITE (Commercial)	7-SMD Module 6 Leads	85 °C	-40 °C	OCP OTP Remote On/Off SCP UVLO	10 A	5.5 V	Non-Isolated PoL Module	33 W	1	3.63 V	0.75 V	1.3 "	0.53 in	8.3 mm	33 mm	0.33 in	13.5 mm	95 %
Murata Power Solutions Inc. OKY-T/3-W5P-C	2.4 V	Surface Mount	ITE (Commercial)	5-SMD Module	85 °C	-40 °C	OCP OTP Remote On/Off SCP UVLO	3 A	5.5 V	Non-Isolated PoL Module	10 W	1	3.63 V	0.75 V	0.82 "	0.47 "	7.1 mm	20.8 mm	0.28 "	11.9 mm	94.4 %	Active High Enable
Murata Power Solutions Inc. OKY-T/10-W5P-C	2.4 V	Surface Mount	ITE (Commercial)	7-SMD Module 6 Leads	85 °C	-40 °C	OCP OTP Remote On/Off SCP UVLO	10 A	5.5 V	Non-Isolated PoL Module	33 W	1	3.63 V	0.75 V	1.3 "	0.53 in	8.4 mm	33 mm	0.33 in	13.5 mm	95 %	Active High Enable
Murata Power Solutions Inc. OKY-T/10-D12N-C	8.3 V	Surface Mount	ITE (Commercial)	7-SMD Module 6 Leads	85 °C	-40 °C	OCP OTP Remote On/Off SCP UVLO	10 A	14 V	Non-Isolated PoL Module	50 W	1	5.5 V	0.75 V	1.3 "	0.53 in	8.4 mm	33 mm	0.33 in	13.5 mm	94.5 %
Murata Power Solutions Inc. OKY-T/16-W5P-C	2.4 V	Surface Mount	ITE (Commercial)	7-SMD Module 6 Leads	85 °C	-40 °C	OCP OTP Remote On/Off SCP UVLO	16 A	5.5 V	Non-Isolated PoL Module	53 W	1	3.63 V	0.75 V	1.3 "	0.53 in	8.4 mm	33 mm	0.33 in	13.5 mm	95 %	Active High Enable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.98
	Digi-Reel®	1	$ 6.98
	Tape & Reel (TR)	400	$ 5.98
Newark	Each (Supplied on Cut Tape)	1	$ 6.64

Description

General part information

OKY-T Series

NON ISOLATED POL DC/DC CONVERTER, 9.9 W, 752.5 MV, 3.63 V, 3 A, ADJUSTABLE, DOSA
