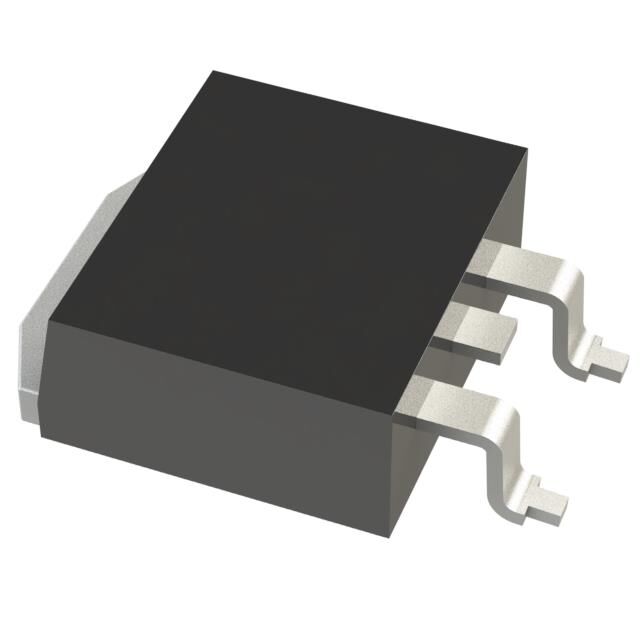

AOB262L

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 60V 20A/140A TO263

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 60V 20A/140A TO263

Technical Specifications

Parameters and characteristics for this part

Specification	AOB262L

Current - Continuous Drain (Id) @ 25°C	140 A, 20 A
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On)	6 V, 10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	115 nC
Input Capacitance (Ciss) (Max) @ Vds [Max]	9800 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Power Dissipation (Max)	2.1 W, 333 W
Rds On (Max) @ Id, Vgs	2.8 mOhm
Supplier Device Package	TO-263 (D2PAK)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	3.2 V

Part	Rds On (Max) @ Id, Vgs	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Technology	Gate Charge (Qg) (Max) @ Vgs	Supplier Device Package	Power Dissipation (Max)	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Vgs(th) (Max) @ Id	Operating Temperature [Min]	Operating Temperature [Max]	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Drain to Source Voltage (Vdss)	Package / Case
Alpha & Omega Semiconductor Inc. AOB262L	2.8 mOhm	Surface Mount	20 A 140 A	MOSFET (Metal Oxide)	115 nC	TO-263 (D2PAK)	2.1 W 333 W	N-Channel	6 V 10 V	3.2 V	-55 °C	175 ░C	20 V	9800 pF	60 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 60 V 20A (Ta), 140A (Tc) 2.1W (Ta), 333W (Tc) Surface Mount TO-263 (D2PAK)
