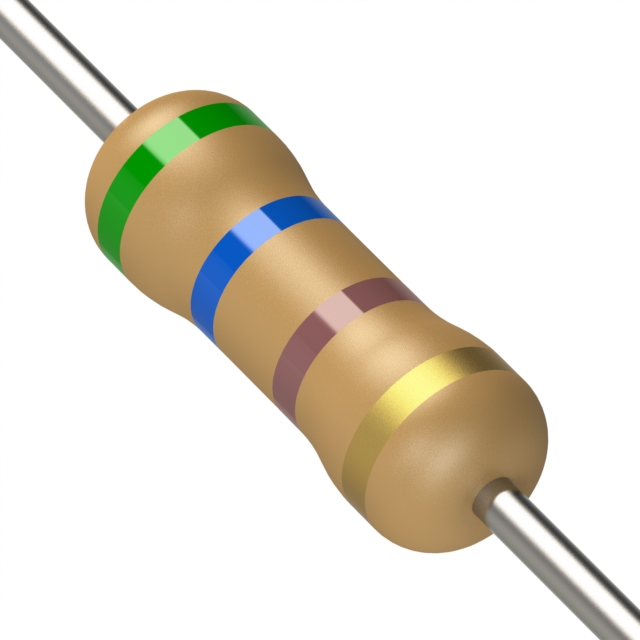

CF1/2CT52R561J

Active

KOA Speer Electronics, Inc.

FIXED RESISTOR, CARBON FILM, 0.5W, 560OHM, 400V, 5% +/-TOL, 450PPM/CEL, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF1/2CT52R561J

Active

KOA Speer Electronics, Inc.

FIXED RESISTOR, CARBON FILM, 0.5W, 560OHM, 400V, 5% +/-TOL, 450PPM/CEL, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CF1/2CT52R561J

Composition	Carbon Film
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance	560 Ohms
Size / Dimension [diameter]	3 mm
Size / Dimension [diameter]	0.118 in
Size / Dimension [x]	0.335 "
Size / Dimension [x]	8.5 mm
Supplier Device Package	Axial
Temperature Coefficient [Max]	350 ppm/°C
Temperature Coefficient [Min]	-450 ppm/°C
Tolerance	5 %

CF1/2 Series

Part	Resistance	Power (Watts)	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Temperature Coefficient [Max]	Temperature Coefficient [Min]	Package / Case	Composition	Number of Terminations	Tolerance	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]
KOA Speer Electronics, Inc. CF1/2CT52R820J	82 Ohms	0.5 W	0.5 W	155 °C	-55 °C	Axial	350 ppm/°C	-450 ppm/°C	Axial	Carbon Film	2	5 %	3 mm	0.335 "	0.118 in	8.5 mm
KOA Speer Electronics, Inc. CF1/2CT52R561J	560 Ohms	0.5 W	0.5 W	155 °C	-55 °C	Axial	350 ppm/°C	-450 ppm/°C	Axial	Carbon Film	2	5 %	3 mm	0.335 "	0.118 in	8.5 mm
KOA Speer Electronics, Inc. CF1/2CT52R5R1J	5.1 Ohms	0.5 W	0.5 W	155 °C	-55 °C	Axial	350 ppm/°C	-450 ppm/°C	Axial	Carbon Film	2	5 %	3 mm	0.335 "	0.118 in	8.5 mm
KOA Speer Electronics, Inc. CF1/2CT52R434J	430 kOhms	0.5 W	0.5 W	155 °C	-55 °C	Axial	-700 ppm/°C	0 ppm/°C	Axial	Carbon Film	2	5 %	3 mm	0.335 "	0.118 in	8.5 mm
KOA Speer Electronics, Inc. CF1/2CT52R161J	160 Ohms	0.5 W	0.5 W	155 °C	-55 °C	Axial	350 ppm/°C	-450 ppm/°C	Axial	Carbon Film	2	5 %	3 mm	0.335 "	0.118 in	8.5 mm
KOA Speer Electronics, Inc. CF1/2C392J	3.9 kOhms	0.5 W	0.5 W	155 °C	-55 °C	Axial	350 ppm/°C	-450 ppm/°C	Axial	Carbon Film	2	5 %	3 mm	0.335 "	0.118 in	8.5 mm
KOA Speer Electronics, Inc. CF1/2CT52R474J	470 kOhms	0.5 W	0.5 W	155 °C	-55 °C	Axial	-700 ppm/°C	0 ppm/°C	Axial	Carbon Film	2	5 %	3 mm	0.335 "	0.118 in	8.5 mm
KOA Speer Electronics, Inc. CF1/2CT52R151J	150 Ohms	0.5 W	0.5 W	155 °C	-55 °C	Axial	350 ppm/°C	-450 ppm/°C	Axial	Carbon Film	2	5 %	3 mm	0.335 "	0.118 in	8.5 mm
KOA Speer Electronics, Inc. CF1/2CT52R271J	270 Ohms	0.5 W	0.5 W	155 °C	-55 °C	Axial	350 ppm/°C	-450 ppm/°C	Axial	Carbon Film	2	5 %	3 mm	0.335 "	0.118 in	8.5 mm
KOA Speer Electronics, Inc. CF1/2CT52R392J	3.9 kOhms	0.5 W	0.5 W	155 °C	-55 °C	Axial	350 ppm/°C	-450 ppm/°C	Axial	Carbon Film	2	5 %	3 mm	0.335 "	0.118 in	8.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.12
		10	$ 0.10
		25	$ 0.07
		50	$ 0.06
		100	$ 0.04
		250	$ 0.03
		500	$ 0.02
		1000	$ 0.02
	Tape & Reel (TR)	4000	$ 0.02
		8000	$ 0.01
		12000	$ 0.01
		28000	$ 0.01
		100000	$ 0.01

Description

General part information

CF1/2 Series

560 Ohms ±5% 0.5W, 1/2W Through Hole Resistor Axial Carbon Film
