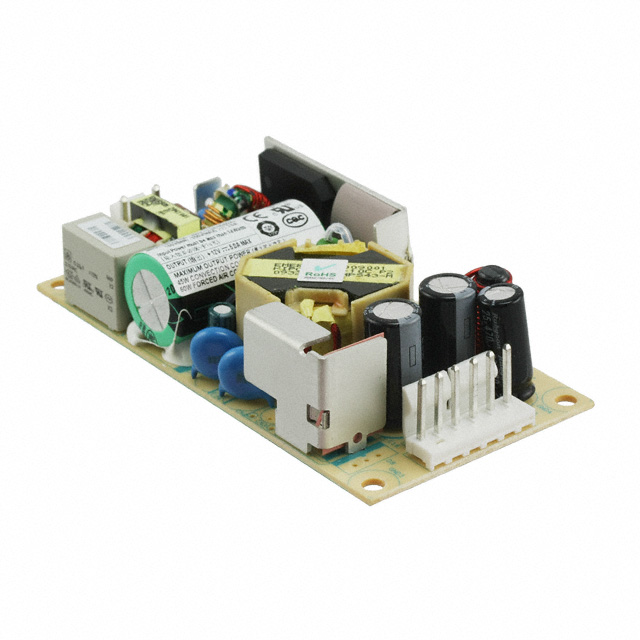

NPS43-M

Active

ARTESYN / Advanced Energy

AC/DC CONVERTER 12V 45W

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

AC/DC CONVERTER 12V 45W

Technical Specifications

Parameters and characteristics for this part

Specification	NPS43-M

Applications	ITE (Commercial), Medical
Approval Agency	UL, CCC, TUV, CE, CSA, CB
Current - Output 1	3.75 A
Efficiency	87 %
Features	Remote Sense, Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	0 °C
Power (Watts)	45 W
Size / Dimension [x]	4 in
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	21.8 mm
Size / Dimension [z]	1 "
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	12 V

Part	Voltage - Output 1	Number of Outputs	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Power (Watts)	Current - Output 1	Minimum Load Required	Efficiency	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Features	Type
ARTESYN / Advanced Energy NPS43-M	12 V	1	ITE (Commercial) Medical	50.8 mm	21.8 mm	4 in	101.6 mm	2 in	1 "	90 VAC	264 VAC	Chassis Mount	45 W	3.75 A		87 %	CB CCC CE CSA TUV UL	80 ¯C	0 °C	Adjustable Output DC Input Capable Remote Sense Universal Input	Open Frame

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
