2.5FRP9C

Active

HELLERMANNTYTON

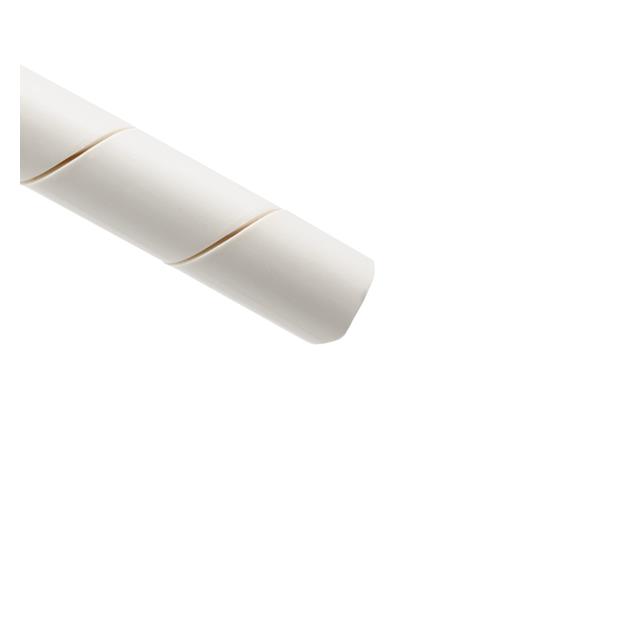

SPIRAL WRAP, FLAME RETARDANT, 0.125 ", 3.18 MM, POLYETHYLENE, FLAME RETARDANT, NATURAL, 100 FT

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SPIRAL WRAP, FLAME RETARDANT, 0.125 ", 3.18 MM, POLYETHYLENE, FLAME RETARDANT, NATURAL, 100 FT

Technical Specifications

Parameters and characteristics for this part

Specification	2.5FRP9C

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside, Expanded	76.2 mm
Diameter - Inside, Expanded [diameter]	3 in
Diameter - Outside, Non-Expanded [diameter]	0.375 "
Diameter - Outside, Non-Expanded [diameter]	9.52 mm
Features	Self Extinguishing, Chemical Resistant
Heat Protection	Flame Retardant
Length	100 ft
Length	30.48 m
Material	Polyethylene (PE)
Material Flammability Rating	UL94 V-1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness [custom]	1.32 mm
Wall Thickness [custom]	0.052 in

Part	Color	Abrasion Protection	Features	Type	Wall Thickness [custom]	Wall Thickness [custom]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Material	Type Attributes	Length	Length	Heat Protection	Diameter - Inside, Expanded	Diameter - Inside, Expanded [diameter]
HELLERMANNTYTON 2.5FRP9C	Natural	Abrasion Resistant	Chemical Resistant Self Extinguishing	Spiral Wrap	1.32 mm	0.052 in	0.375 "	9.52 mm	UL94 V-1	-20 C	80 C	Polyethylene (PE)	Harness	100 ft	30.48 m	Flame Retardant	76.2 mm	3 in
HELLERMANNTYTON 2.5FRP0C	Black	Abrasion Resistant	Chemical Resistant Self Extinguishing	Spiral Wrap	1.32 mm	0.052 in	0.375 "	9.52 mm	UL94 V-1	-20 C	80 C	Polyethylene (PE)	Harness	100 ft	30.48 m	Flame Retardant	76.2 mm	3 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
