DCDH-37SSBN

Active

Cinch Connectivity Solutions Trompeter

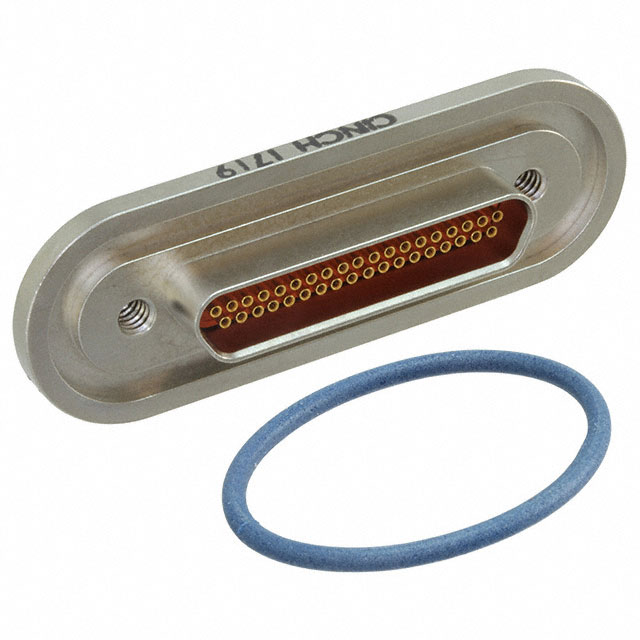

CONN MICRO-D RCPT 37POS PNL MNT

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN MICRO-D RCPT 37POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	DCDH-37SSBN

Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Diallyl Phthalate (DAP), Glass Filled
Flange Feature	Housing/Shell (4-40)
Ingress Protection	Harsh Environment
Material Flammability Rating	UL94 V-0
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Aluminum Alloy, Electroless

Part	Flange Feature	Shell Material, Finish	Number of Rows	Connector Style	Connector Type	Current Rating (Amps)	Contact Type	Ingress Protection	Contact Material	Wire Gauge	Dielectric Material	Material Flammability Rating	Contact Finish	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness	Contact Finish Thickness
Cinch Connectivity Solutions Trompeter DCDH-37S4C40.5BN	Housing/Shell (4-40)	Aluminum Alloy Electroless Nickel Plated	2	D-Type Micro-D	Receptacle Female Sockets	3 A	Signal	Harsh Environment	Copper Alloy	24 AWG	Diallyl Phthalate (DAP) Glass Filled	UL94 V-0	Gold	37	-55 °C	125 °C	Wire Leads	50 µin	1.27 µm
Cinch Connectivity Solutions Trompeter DCDH-37PSBN	Housing/Shell (4-40)	Aluminum Alloy Electroless Nickel Plated	2	D-Type Micro-D	Male Pins Plug	3 A	Signal	Harsh Environment	Copper Alloy		Diallyl Phthalate (DAP) Glass Filled	UL94 V-0	Gold	37	-55 °C	125 °C		50 µin	1.27 µm
Cinch Connectivity Solutions Trompeter DCDH-37SSBN	Housing/Shell (4-40)	Aluminum Alloy Electroless Nickel Plated	2	D-Type Micro-D	Receptacle Female Sockets	3 A	Signal	Harsh Environment	Copper Alloy		Diallyl Phthalate (DAP) Glass Filled	UL94 V-0	Gold	37	-55 °C	125 °C		50 µin	1.27 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position D-Type, Micro-D Receptacle, Female Sockets Connector
