A97001-025

Active

Omnetics

MICRO-D 25POS BACKSHELL KIT

Search across all available documentation for this part.

Active

Omnetics

MICRO-D 25POS BACKSHELL KIT

Technical Specifications

Parameters and characteristics for this part

Part	Compatible D-Sub Size	Primary Material	Color	Material	Cable Type	Features	Shielding	Plating	Accessory Type	Cable Exit	Number of Positions	Compatible Shell Size
Omnetics A97001-037	37pos HD62pos	Metal	Silver	Aluminum Alloy	Flat	Mating Screws 2-56	Shielded	Electroless Nickel	One Piece Backshell	180 °	37	C
Omnetics A97001-025	25pos HD44pos	Metal	Silver	Aluminum Alloy	Flat	Mating Screws 2-56	Shielded	Electroless Nickel	One Piece Backshell	180 °		B
Omnetics A97001-513		Metal	Silver	Aluminum Alloy	Flat	Mating Screws 2-56	Shielded	Electroless Nickel	One Piece Backshell	180 °	51
Omnetics A97001-512		Metal	Silver	Aluminum Alloy	Flat	Mating Screws 2-56	Shielded	Electroless Nickel	One Piece Backshell	180 °	51
Omnetics A97001-031		Metal	Silver	Aluminum Alloy	Flat	Mating Screws 2-56	Shielded	Electroless Nickel	One Piece Backshell	180 °	31

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

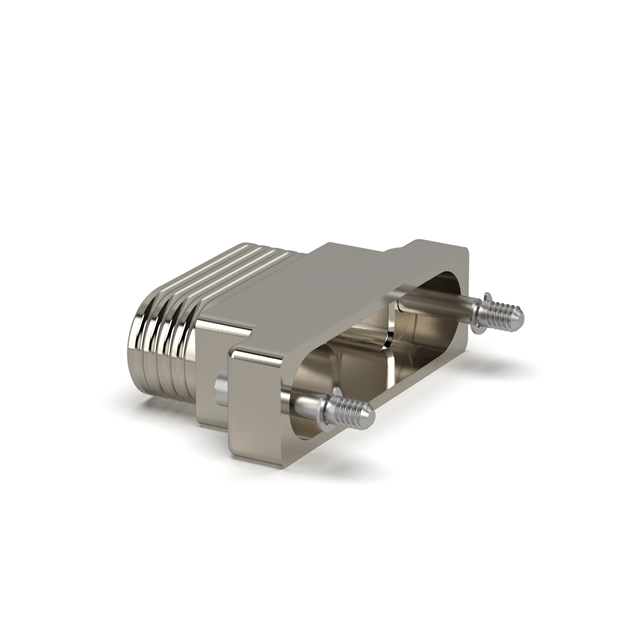

25 Position One Piece Backshell Connector Silver 180° Shielded

Technical documentation and resources

No documents available
