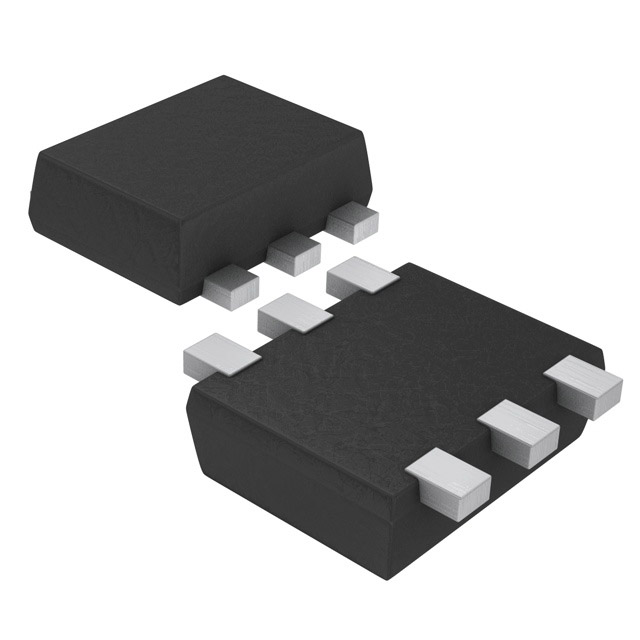

SMA3117-TL-H
ActiveON Semiconductor
RF AMP SINGLE WIDEBAND AMP 3GHZ 5.5V 6-PIN MCPH T/R
Deep-Dive with AI
Search across all available documentation for this part.
SMA3117-TL-H
ActiveON Semiconductor
RF AMP SINGLE WIDEBAND AMP 3GHZ 5.5V 6-PIN MCPH T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMA3117-TL-H |
|---|---|
| Current - Supply | 40 mA |
| Frequency [Max] | 3 GHz |
| Frequency [Min] | 100 MHz |
| Gain | 33.5 dBi |
| Mounting Type | Surface Mount |
| Noise Figure | 3.9 dB |
| P1dB | 5.7 dBm |
| Package / Case | 6-SMD, Flat Leads |
| RF Type | General Purpose |
| Supplier Device Package | 6-MCPH |
| Test Frequency | 2.2 GHz |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.34 | |
| 10 | $ 0.30 | |||
| 25 | $ 0.27 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| Digi-Reel® | 1 | $ 0.34 | ||
| 10 | $ 0.30 | |||
| 25 | $ 0.27 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| Tape & Reel (TR) | 3000 | $ 0.17 | ||
| LCSC | N/A | 1 | $ 0.00 | |
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.55 | |
| 10 | $ 0.49 | |||
| 25 | $ 0.46 | |||
| 50 | $ 0.45 | |||
| 100 | $ 0.43 | |||
| 250 | $ 0.41 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.39 | |||
| ON Semiconductor | N/A | 1 | $ 0.18 | |
Description
General part information
SMA3117 Series
SMA3117 is RF MMIC, Amplifier, 5 V, 22.7 mA, 0.1 to 3 GHz.
