HLW5R-2C7LF

Active

Amphenol ICC (FCI)

CONN FFC FPC TOP 5POS 1MM R/A

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN FFC FPC TOP 5POS 1MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	HLW5R-2C7LF

Actuator Color	Black
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.154 in
Height Above Board	3.9 mm
Housing Color	Black
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mating Cycles	30
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	100 V

Part	Connector/Contact Type	Mounting Type	Housing Material	Cable End Type	Material Flammability Rating	FFC, FCB Thickness [z]	Contact Material	Contact Finish	Voltage Rating	Pitch [x]	Pitch [x]	Mating Cycles	Flat Flex Type	Termination	Housing Color	Actuator Color	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board	Height Above Board	FFC, FCB Thickness
Amphenol ICC (FCI) HLW5R-2C7LF	Contacts Top	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled	Straight Tapered	UL94 V-0	0.3 mm 0.33 mm	Phosphor Bronze	Tin	100 V	0.039 in	1 mm	30	FFC FPC	Solder	Black	Black	85 °C	-55 °C	0.154 in	3.9 mm
Amphenol ICC (FCI) HLW5R-6C7LF	Contacts Top	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled	Tapered	UL94 V-0		Phosphor Bronze	Tin	100 V	0.039 in	1 mm	5	CIC	Kinked Pin	Black		85 °C	-55 °C	0.154 in	3.9 mm	0.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

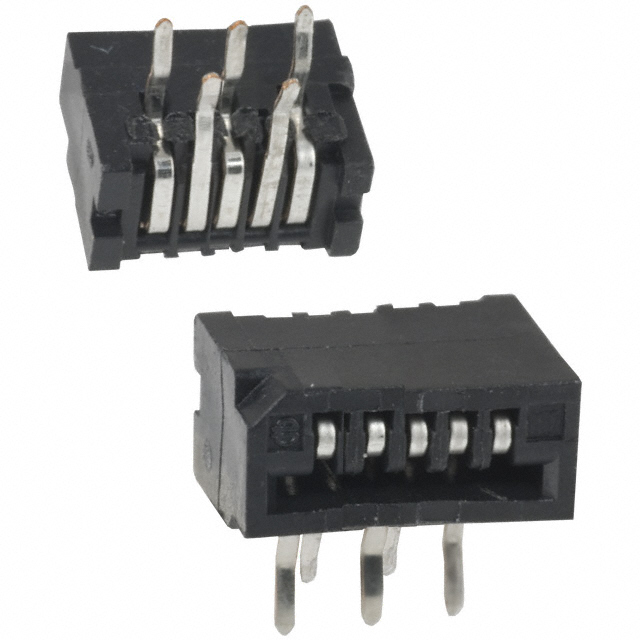

5 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Through Hole, Right Angle
