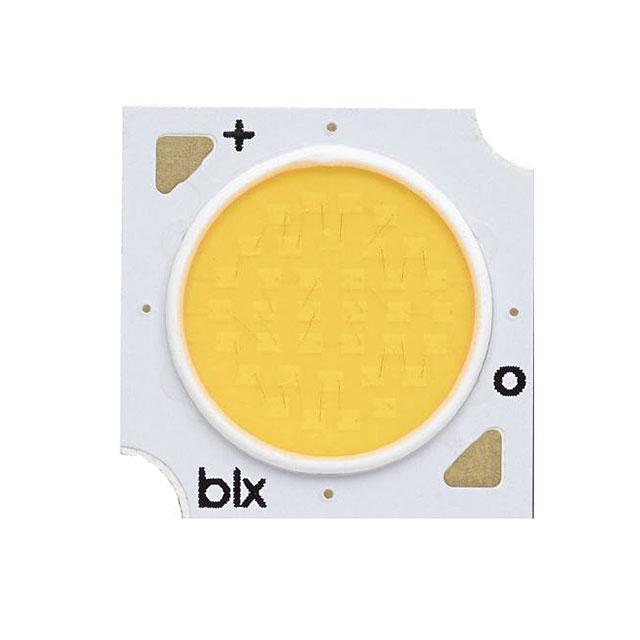

BXRE-30G1000-C-73

Active

BRIDGELUX

LED MODULES UNI-COLOR WHITE 2-PIN TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRE-30G1000-C-73

Active

BRIDGELUX

LED MODULES UNI-COLOR WHITE 2-PIN TRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRE-30G1000-C-73

CCT (K)	3000 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	720 mA
Current - Test	360 mA
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	10.2 mm
Lumens/Watt @ Current - Test	114 lm/W
Luminous Flux @ Current/Temperature	1398 lm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	34 V

BXRE-30 Series

...

Part	CRI (Color Rendering Index)	CCT (K)	Size / Dimension [x]	Size / Dimension [y]	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Current - Test	Height [z]	Luminous Flux @ Current/Temperature	Color	Configuration	Light Emitting Surface (LES) [diameter]	Type	Current - Max [Max]	Viewing Angle	Lens Type	Temperature - Test	Features
BRIDGELUX BXRE-30E4000-F-23	80	3000 K	21 mm	21 mm	132 lm/W	29.5 V	1.05 A	1.7 mm	4097 lm	Warm White	Square	18.6 mm	Chip On Board (COB)	2.1 A	120 °	Flat
BRIDGELUX BXRE-30E0800-D-83	80	3000 K			175 lm/W	16.8 V	300 mA		880 lm	Warm White	Square	8 mm	Chip On Board (COB)			Flat
BRIDGELUX BXRE-30G3000-D-83	90	3000 K			144 lm/W	33.7 V	500 mA		2411 lm	Warm White	Square	15 mm	Chip On Board (COB)			Flat
BRIDGELUX BXRE-30G1000-C-73	90	3000 K			114 lm/W	34 V	360 mA	1.7 mm	1398 lm	Warm White	Square	10.2 mm	Chip On Board (COB)	720 mA		Flat	85 °C
BRIDGELUX BXRE-30G10H0-C-83	90	3000 K			151 lm/W	30.7 V	300 mA	1.65 mm	1395 lm	Warm White	Square	10.2 mm	Chip On Board (COB)	1 A	120 °	Flat
BRIDGELUX BXRE-30E3000-D-83	80	3000 K			178 lm/W	33.7 V	500 mA		3010 lm	Warm White	Square	15 mm	Chip On Board (COB)			Flat
BRIDGELUX BXRE-30G20F0-B-83	90		19 mm	19 mm	188 lm/W	33.4 V	350 mA	1.65 mm	2256 lm	Warm White	Square	14.8 mm	Chip On Board (COB)	900 mA	120 °	Flat		Dimming
BRIDGELUX BXRE-30E6500-C-72	80	3000 K	28 mm	28 mm	143 lm/W	50.7 V	1.44 A	1.7 mm	10467 lm	Warm White	Square	22.6 mm	Chip On Board (COB)	2.88 A	120 °	Flat	85 °C
BRIDGELUX BXRE-30G6500-D-83	90	3000 K			147 lm/W	33.5 V	1.05 A		5201 lm	Warm White	Square	22 mm	Chip On Board (COB)			Flat
BRIDGELUX BXRE-30E2000-B-72	80	3000 K	19 mm	19 mm	143 lm/W	33.9 V	450 mA	1.7 mm	1960 lm	Warm White	Square	14 mm	Chip On Board (COB)	900 mA	120 °	Flat	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.41
Digikey	Tray	595	$ 2.51

Description

General part information

BXRE-30 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 7 V10 Array White, Warm Square
