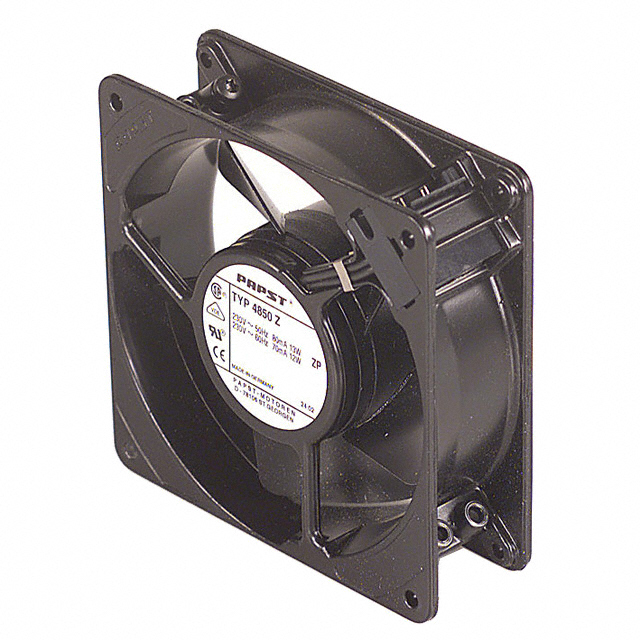

4850Z
Activeebm-papst Inc.
FAN AXIAL 119X38MM 230VAC TERM
Deep-Dive with AI
Search across all available documentation for this part.
4850Z
Activeebm-papst Inc.
FAN AXIAL 119X38MM 230VAC TERM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4850Z |
|---|---|
| Air Flow | 1.64 m³/min |
| Air Flow | 58.8 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Sintec |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Metal |
| Material - Frame | Metal |
| Noise | 26 dB |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 13 W |
| RPM | 1700 RPM |
| Size / Dimension [x] | 119 mm |
| Size / Dimension [y] | 119 mm |
| Termination | 2 Terminals |
| Voltage - Rated | 230 VAC |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 52.01 | |
| 10 | $ 47.05 | |||
| 25 | $ 43.96 | |||
| 50 | $ 43.34 | |||
| 100 | $ 39.93 | |||
| 250 | $ 39.62 | |||
Description
General part information
4850 Series
Fan Tubeaxial 230VAC Square - 119mm L x 119mm H Sintec 58.8 CFM (1.64m³/min) 2 Terminals
