WLB32C1130PBQ
ActiveBANNER ENGINEERING

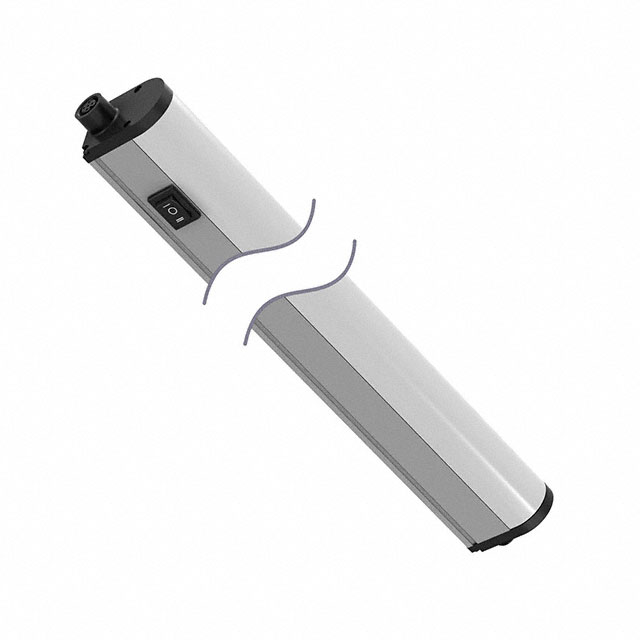

LED WORK LIGHT, 1.166M, 30V, 4PIN M12 QD
Deep-Dive with AI
Search across all available documentation for this part.
WLB32C1130PBQ
ActiveBANNER ENGINEERING
LED WORK LIGHT, 1.166M, 30V, 4PIN M12 QD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WLB32C1130PBQ |
|---|---|
| Approval Agency | cULus, CE |
| Features | High/Low/Off Switching |
| Housing Material | Aluminum (Al) |
| Illumination Color | White, Cool |
| Ingress Protection | IP50 |
| Length [x] | 44.49 in |
| Length [x] | 1130 mm |
| Lens Type | Tubular, Diffused |
| Luminous Flux | 3000 lm |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Profile (W x H) [x] | 32 mm |
| Profile (W x H) [x] | 1.26 in |
| Profile (W x H) [y] | 1.81 in |
| Profile (W x H) [y] | 46 mm |
| Rated Life | 50000 Hours |
| Termination Style | Connector (M12) |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
WLB32C1130 Series
LED WORK LIGHT, 1.166M, 30V, 4PIN M12 QD
